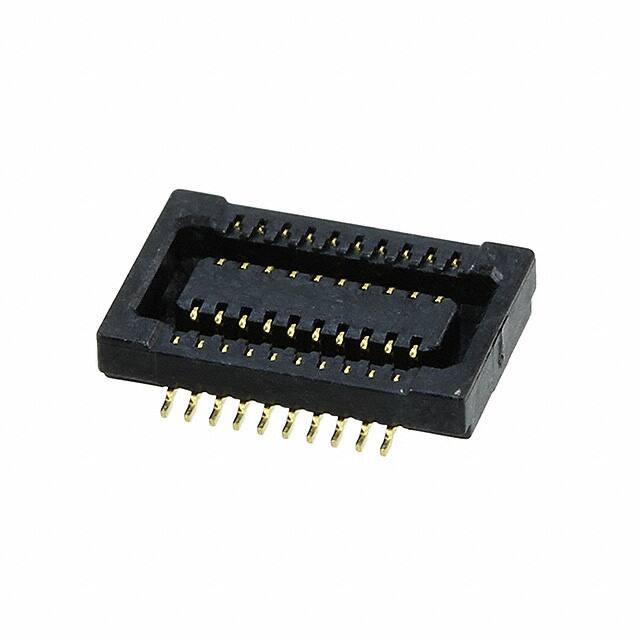

DF23C-20DS-0.5V(51)

Teknik Özellikler

Pozisyon Sayısı

20

Housing Color

Black

Contact Gender

Female

HTS Kodu

8536.69.40.40

Orientation

Straight

Housing Material

Polymer

Mil Conformance

NO

Ambalaj

Tape & Reel (TR)

Ul Flammability Code

94V-0

Seri

DF23

Height Above Board

0.057 1.45mm

Durability

50 Cycles

Number Of Conductors

ONE

Total Number Of Contacts

20

Pitch

0.020 0.50mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Receptacle, Center Strip Contacts

Rated Current Signal

0.3A

Fabrika Tedarik Süresi

12 Weeks

Row Spacing

6 mm

Stack Height Mating

1.5mm

ECCN Kodu

EAR99

Reference Standard

UL

Insulation Resistance

500MOhm

Radyasyon Dayanımı

No

Polarization Key

POLARIZED HOUSING

Reach Svhc

No SVHC

Din Conformance

NO

Gender

Receptacle

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Reliability

COMMERCIAL

JESD-609 Kodu

e3

Contact Resistance

60mOhm

Kurşunsuz

Lead Free

Number Of Pcb Rows

2

Filter Feature

NO

Option

GENERAL PURPOSE

Iec Conformance

NO

Pcb Contact Pattern

RECTANGULAR
