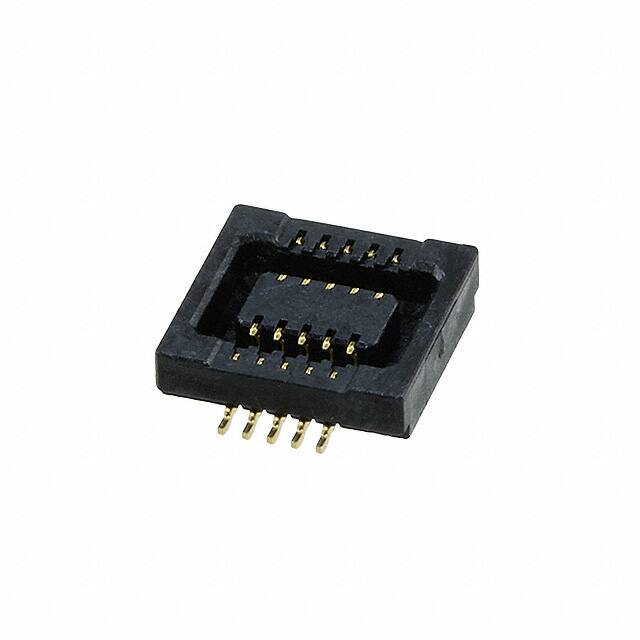

DF23C-10DS-0.5V(51)

Teknik Özellikler

Sıra Sayısı

2

Maks. Çalışma Sıcaklığı

85°C

Contact Finish

Gold

Dielectric Withstanding Voltage

150VAC V

Montaj

Surface Mount

Contact Materials

Bronze

Montaj Tipi

Surface Mount

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

SMD/SMT

Kurşunsuz Kodu

yes

Additional Feature

LOW PROFILE

Min. Çalışma Sıcaklığı

-35°C

Akım Değeri

300mA

Option

GENERAL PURPOSE

Kurşunsuz

Lead Free

Filter Feature

NO

Number Of Pcb Rows

2

Contact Resistance

60mOhm

JESD-609 Kodu

e4

Iec Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Contact Style

BELLOWED TYPE

Lead Pitch

500μm

Nominal Gerilim

50V

Parça Durumu

Active

Flammability Rating

UL94 V-0

Pitch

0.020 0.50mm

Total Number Of Contacts

10

Number Of Conductors

ONE

Row Spacing

6 mm

Stack Height Mating

1.5mm

Rated Current Signal

0.3A

Fabrika Tedarik Süresi

10 Weeks

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Receptacle, Center Strip Contacts

Insulation Resistance

500MOhm

Radyasyon Dayanımı

No

Polarization Key

POLARIZED HOUSING

Reach Svhc

No SVHC
