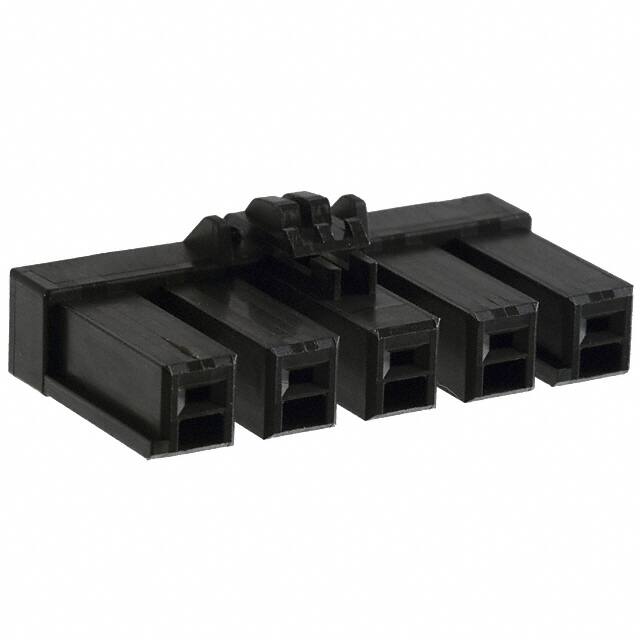

DF22R-5S-7.92C(28)

Teknik Özellikler

Fastening Type

Latch Lock

Seri

EnerBee™ DF22

Contact Finish Mating

NOT SPECIFIED

Ul Flammability Code

94V-0

Ambalaj

Bulk

Contact Termination

Crimp

Renk

Black

Parça Durumu

Active

Voltage Rated Dc

1kV

Özellikler

Polarizing Key

Option

GENERAL PURPOSE

Kurşunsuz

Lead Free

Filter Feature

NO

Pozisyon Sayısı

5

Mil Conformance

NO

Iec Conformance

NO

Housing Material

Polyamide

Orientation

Straight

Reach Svhc

Unknown

Note

Contacts Not Included

Reference Standard

UL

RoHS Durumu

RoHS Compliant

Montaj Tipi

Free Hanging (In-Line)

Nem Hassasiyeti (MSL)

Not Applicable

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Reliability

COMMERCIAL

Din Conformance

NO

Additional Feature

PANEL MOUNTABLE

Uzunluk

39.26mm

Pitch

0.312 7.92mm

Total Number Of Contacts

5

Sıra Sayısı

1

Montaj

Cable, Free Hanging

Number Of Conductors

ONE

Contact Materials

NOT SPECIFIED

Genişlik

11.55mm

Contact Type

Female Socket

Fabrika Tedarik Süresi

10 Weeks

Depth

20mm
