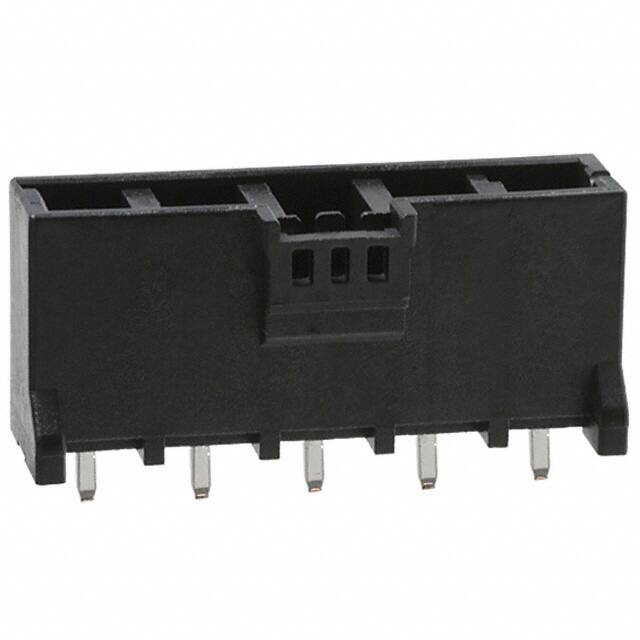

DF22R-5P-7.92DSA(05)

Teknik Özellikler

Housing Material

Polyamide

Contact Finish Thickness Mating

39.4μin 1.00μm

Orientation

Straight

Mil Conformance

NO

Pozisyon Sayısı

5

Contact Shape

Square

Pitch Mating

0.312 7.92mm

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Seri

EnerBee™ DF22

Insulation Height

0.713 18.10mm

Ul Flammability Code

94V-0

Contact Finish Mating

Tin-Copper

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Contact Type

Male Pin

Stack Height Mating

25.7mm 28.7mm

ECCN Kodu

EAR99

Style

Board to Cable/Wire

Current Rating Amps

22A

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Çalışma Sıcaklığı

-35°C~85°C

Mixed Contacts

NO

Gender

Male

Din Conformance

NO

Reach Svhc

Unknown

Iec Conformance

NO

Contact Plating

Tin

Shrouding

Shrouded - 4 Wall

JESD-609 Kodu

e2

Contact Lengthmating

0.354 9.00mm

Option

GENERAL PURPOSE

Kurşunsuz

Lead Free

Filter Feature

NO

Voltage Rated Dc

1kV

Insulation Color

Black

Özellikler

Board Guide

Lead Pitch

7.92mm

Nominal Gerilim

1000V

Contact Length Post

0.146 3.70mm
