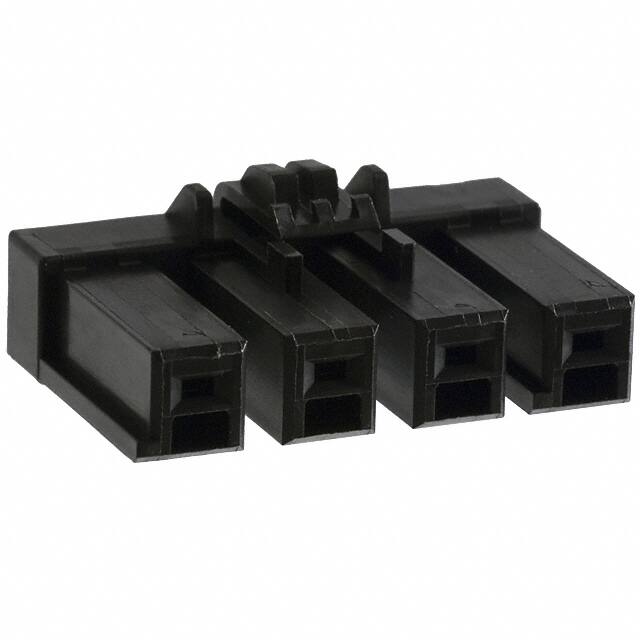

DF22R-4S-7.92C(28)

Teknik Özellikler

Min. Çalışma Sıcaklığı

-35°C

Additional Feature

PANEL MOUNTABLE

Din Conformance

NO

Reliability

COMMERCIAL

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Free Hanging (In-Line)

RoHS Durumu

RoHS Compliant

Reference Standard

UL

Note

Contacts Not Included

Reach Svhc

Unknown

Connector Type

Receptacle

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

10 Weeks

Contact Type

Female Socket

Contact Materials

COPPER ALLOY

Number Of Conductors

ONE

Montaj

Free Hanging, Panel

Total Number Of Contacts

4

Maks. Çalışma Sıcaklığı

85°C

Sıra Sayısı

1

Pitch

0.312 7.92mm

Özellikler

Polarizing Key

Voltage Rated Dc

1kV

Parça Durumu

Active

Nominal Gerilim

1kV

Renk

Black

Contact Termination

Crimp

Ambalaj

Bulk

Contact Finish Mating

GOLD

Seri

EnerBee™ DF22

Fastening Type

Latch Lock

Housing Material

Polyamide

Iec Conformance

NO

Mil Conformance

NO

Pozisyon Sayısı

4

JESD-609 Kodu

e4

Contact Resistance

5mOhm

Filter Feature

NO
