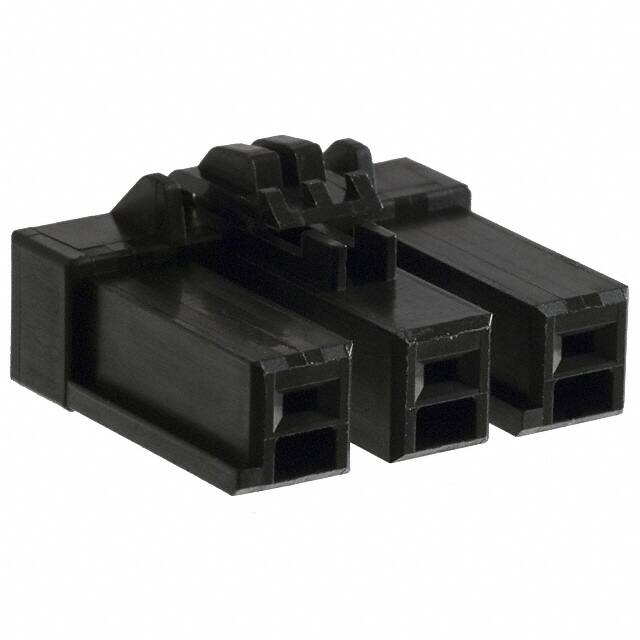

DF22R-3S-7.92C(28)

Teknik Özellikler

Fabrika Tedarik Süresi

12 Weeks

Depth

20mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Receptacle

Contact Type

Female Socket

Genişlik

11.55mm

Montaj

Cable, Free Hanging

Number Of Conductors

ONE

Contact Materials

COPPER ALLOY

Pitch

0.312 7.92mm

Total Number Of Contacts

3

Sıra Sayısı

1

Uzunluk

23.42mm

Mixed Contacts

NO

Reliability

COMMERCIAL

Kurşunsuz Kodu

yes

Additional Feature

PANEL MOUNTABLE

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Radyasyon Dayanımı

No

Note

Contacts Not Included

Reach Svhc

Unknown

Montaj Tipi

Free Hanging (In-Line)

RoHS Durumu

RoHS Compliant

Reference Standard

UL

Housing Material

Polyamide

Orientation

Straight

Iec Conformance

NO

Mil Conformance

NO

Contact Resistance

5mOhm

Pozisyon Sayısı

3

JESD-609 Kodu

e2

Option

GENERAL PURPOSE

Kurşunsuz

Lead Free

Filter Feature

NO

Voltage Rated Dc

1kV

Özellikler

Polarizing Key

Renk

Black

Operating Temperature Max

85°C

Parça Durumu

Active
