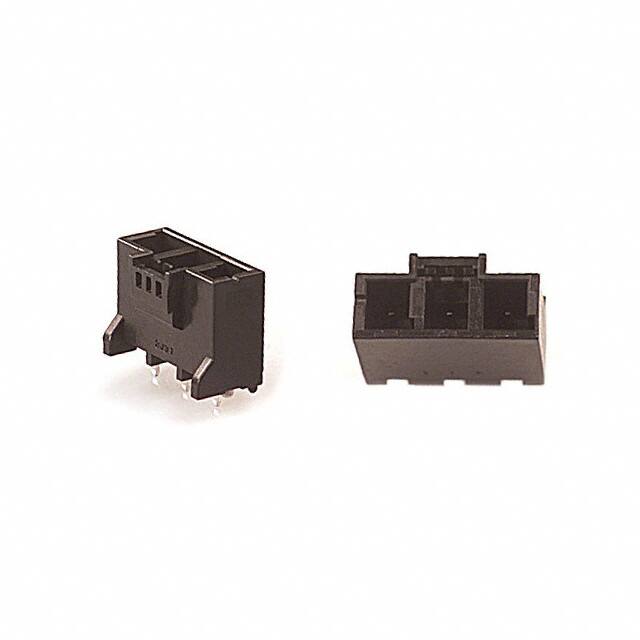

DF22R-3P-7.92DS(05)

Teknik Özellikler

Sıra Sayısı

1

Montaj

Through Hole

Contact Materials

Copper Alloy

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole, Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Kurşunsuz Kodu

yes

Additional Feature

PANEL MOUNTABLE

Option

GENERAL PURPOSE

Contact Lengthmating

0.354 9.00mm

Filter Feature

NO

Kurşunsuz

Lead Free

Shrouding

Shrouded - 4 Wall

JESD-609 Kodu

e2

Iec Conformance

NO

Contact Plating

Tin

Fastening Type

Latch Holder

Number Of Positions Loaded

All

Lead Pitch

7.92mm

Nominal Gerilim

1000V

Contact Length Post

0.146 3.70mm

Parça Durumu

Active

Voltage Rated Dc

1kV

Insulation Color

Black

Özellikler

Board Guide

Insulation Materials

Polyamide (PA), Nylon

Contact Type

Male Pin

Current Rating Amps

25A

Style

Board to Cable/Wire

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Reach Svhc

Unknown

Radyasyon Dayanımı

No

Mixed Contacts

NO

Gender

Male

Din Conformance

NO

Çalışma Sıcaklığı

-35°C~85°C

Pitch Mating

0.312 7.92mm

Contact Shape

Square
