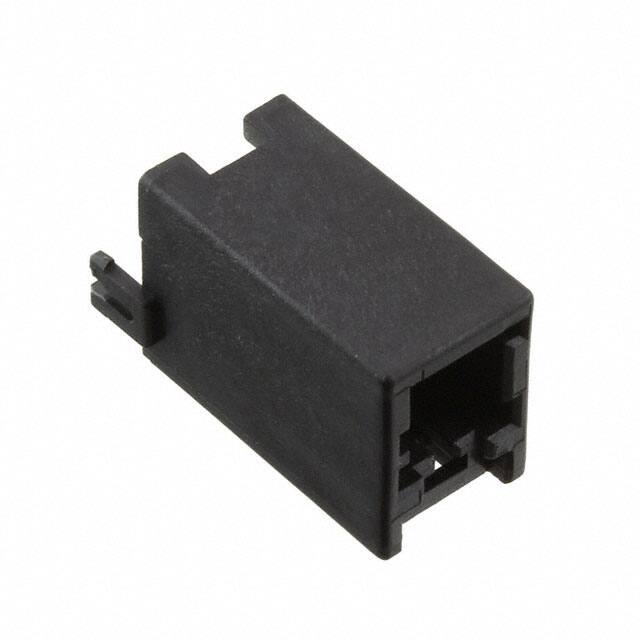

DF22R-1P-7.92DSA(05)

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Reach Svhc

Unknown

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-35°C~85°C

Mixed Contacts

NO

Gender

Male

Din Conformance

NO

Additional Feature

PANEL MOUNTABLE

Montaj

Through Hole

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Contact Materials

Copper Alloy

Sıra Sayısı

1

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

ECCN Kodu

EAR99

Stack Height Mating

25.7mm 28.7mm

Contact Type

Male Pin

Current Rating Amps

30A

Style

Board to Cable/Wire

Ambalaj

Bulk

Number Of Positions Loaded

All

Seri

EnerBee™ DF22

Fastening Type

Latch Holder

Contact Finish Mating

Tin-Copper

Insulation Height

0.713 18.10mm

Ul Flammability Code

94V-0

Insulation Color

Black

Özellikler

Board Lock

Nominal Gerilim

1000V

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Contact Length Post

0.146 3.70mm

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

JESD-609 Kodu

e2

Pozisyon Sayısı

1

Option

GENERAL PURPOSE

Contact Lengthmating

0.354 9.00mm
