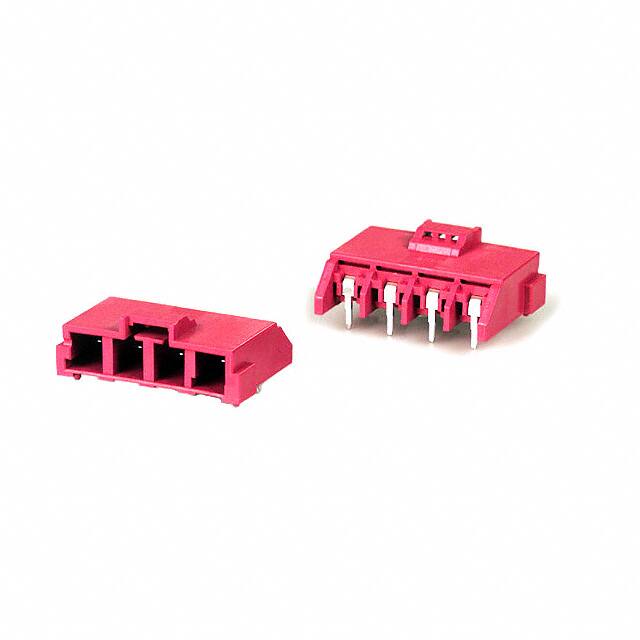

DF22L-4P-7.92DS(05)

Teknik Özellikler

Insulation Height

0.480 12.20mm

Contact Finish Mating

Tin-Copper

Seri

EnerBee™ DF22

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Durability

30 Cycles

Pitch Mating

0.312 7.92mm

Pozisyon Sayısı

4

Contact Shape

Square

Mil Conformance

NO

Contact Finish Thickness Mating

39.4μin 1.00μm

Orientation

Right Angle

Housing Material

Polyamide

Reach Svhc

Unknown

Din Conformance

NO

Gender

Male

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-35°C~85°C

Number Of Conductors

ONE

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Cable/Wire

Current Rating Amps

22A

Contact Type

Male Pin

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Fastening Type

Latch Holder

Number Of Positions Loaded

All

Parça Durumu

Active

Contact Length Post

0.146 3.70mm

Nominal Gerilim

1000V

Lead Pitch

7.92mm

Insulation Color

Red

Özellikler

Board Guide

Voltage Rated Dc

1kV

Kurşunsuz

Lead Free

Contact Lengthmating

0.354 9.00mm

JESD-609 Kodu

e2

Contact Resistance

5mOhm

Shrouding

Shrouded - 4 Wall

Contact Plating

Tin
