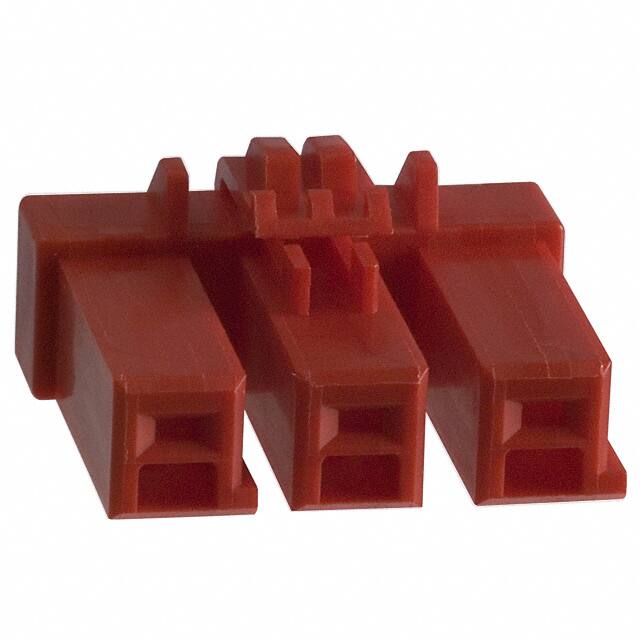

DF22L-3S-7.92C(28)

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

Unknown

Note

Contacts Not Included

Radyasyon Dayanımı

No

Reference Standard

UL

RoHS Durumu

RoHS Compliant

Montaj Tipi

Free Hanging (In-Line)

Uzunluk

23.42mm

Kurşunsuz Kodu

yes

Reliability

COMMERCIAL

Mixed Contacts

NO

Din Conformance

NO

Additional Feature

PANEL MOUNTABLE

Montaj

Cable, Free Hanging

Contact Materials

COPPER ALLOY

Number Of Conductors

ONE

Pitch

0.312 7.92mm

Total Number Of Contacts

3

Sıra Sayısı

1

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Depth

20mm

Genişlik

11.55mm

Contact Type

Female Socket

Ambalaj

Bulk

Contact Termination

Crimp

Seri

EnerBee™ DF22

Fastening Type

Latch Lock

Contact Finish Mating

TIN COPPER

Ul Flammability Code

94V-0

Voltage Rated Dc

1kV

Özellikler

Polarizing Key

Renk

Red

Parça Durumu

Active

Operating Temperature Max

85°C

Contact Resistance

5mOhm

JESD-609 Kodu

e2

Pozisyon Sayısı

3

Option

GENERAL PURPOSE
