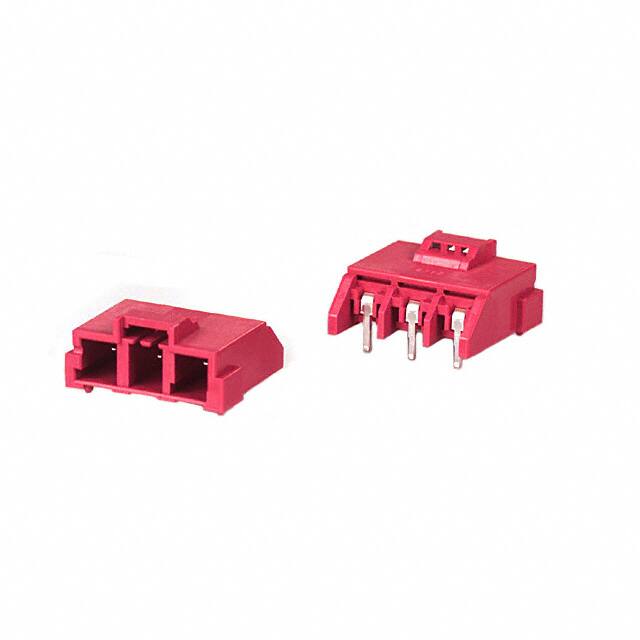

DF22L-3P-7.92DS(05)

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Seri

EnerBee™ DF22

Insulation Height

0.480 12.20mm

Contact Finish Mating

Tin-Copper

Withdrawl Forcemin

.29746 N

Housing Material

Polyamide

Orientation

Right Angle

Contact Finish Thickness Mating

39.4μin 1.00μm

Mil Conformance

NO

Contact Shape

Square

Pozisyon Sayısı

3

Pitch Mating

0.312 7.92mm

Çalışma Sıcaklığı

-35°C~85°C

Reliability

COMMERCIAL

Din Conformance

NO

Gender

Male

Reach Svhc

Unknown

Radyasyon Dayanımı

No

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Contact Type

Male Pin

Current Rating Amps

25A

Style

Board to Cable/Wire

Insulation Materials

Polyamide (PA), Nylon

Number Of Conductors

ONE

Voltage Rated Dc

1kV

Özellikler

Board Guide

Insulation Color

Red

Lead Pitch

7.92mm

Nominal Gerilim

1000V

Contact Length Post

0.146 3.70mm

Parça Durumu

Active

Number Of Positions Loaded

All

Fastening Type

Latch Holder

Iec Conformance

NO

Contact Plating

Tin

Shrouding

Shrouded - 4 Wall

Contact Resistance

5mOhm

JESD-609 Kodu

e2
