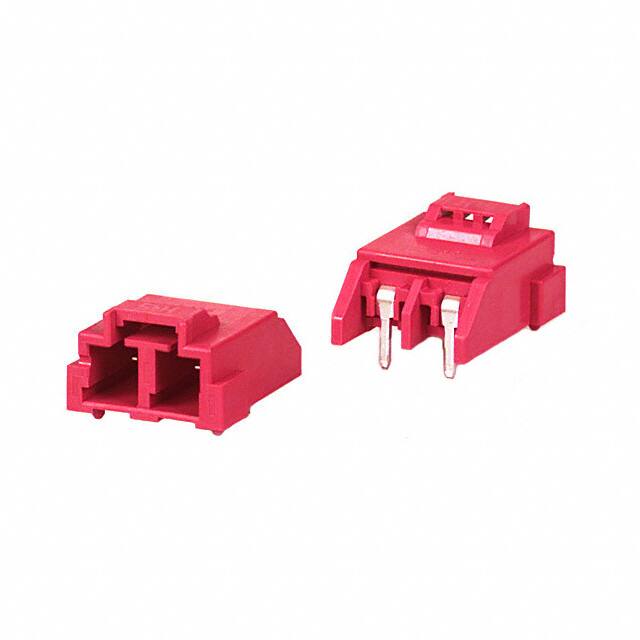

DF22L-2P-7.92DS(05)

Teknik Özellikler

Akım Değeri

25A

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole, Right Angle

RoHS Durumu

RoHS Compliant

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Contact Materials

Copper Alloy

Montaj

Through Hole

Parça Durumu

Active

Contact Length Post

0.146 3.70mm

Nominal Gerilim

1000V

Lead Pitch

7.92mm

Insulation Color

Red

Özellikler

Board Guide

Fastening Type

Latch Holder

Number Of Positions Loaded

All

Contact Plating

Tin

Iec Conformance

NO

Plating Thickness

39μin

Kurşunsuz

Lead Free

Contact Lengthmating

0.354 9.00mm

JESD-609 Kodu

e2

Shrouding

Shrouded - 4 Wall

Contact Resistance

5mOhm

Din Conformance

NO

Gender

Male

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-35°C~85°C

Reach Svhc

Unknown

Style

Board to Cable/Wire

Contact Type

Male Pin

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Insulation Materials

Polyamide (PA), Nylon

Material Flammability Rating

UL94 V-0

Durability

30 Cycles

Insulation Height

0.480 12.20mm

Contact Finish Mating

Tin-Copper
