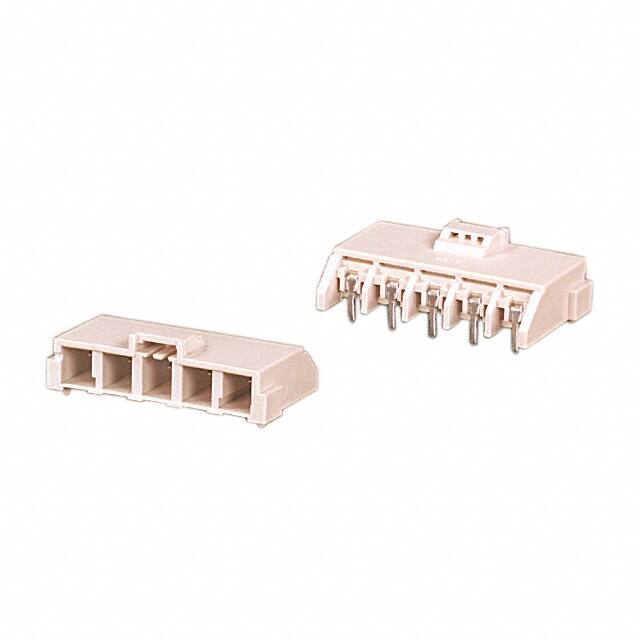

DF22-5P-7.92DSA(05)

Teknik Özellikler

Ambalaj

Bulk

Seri

EnerBee™ DF22

Contact Finish Mating

Tin-Copper

Insulation Height

0.713 18.10mm

Ul Flammability Code

94V-0

Material Flammability Rating

UL94 V-0

Contact Shape

Square

Pozisyon Sayısı

5

Pitch Mating

0.312 7.92mm

Housing Material

Polyamide

Contact Finish Thickness Mating

39.4μin 1.00μm

Orientation

Straight

Mil Conformance

NO

Reach Svhc

Unknown

Çalışma Sıcaklığı

-35°C~85°C

Mixed Contacts

NO

Gender

Male

Din Conformance

NO

Insulation Materials

Polyamide (PA), Nylon

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Stack Height Mating

25.7mm 28.7mm

ECCN Kodu

EAR99

Contact Type

Male Pin

Current Rating Amps

22A

Style

Board to Cable/Wire

Number Of Positions Loaded

All

Fastening Type

Latch Holder

Insulation Color

Beige

Özellikler

Board Guide

Lead Pitch

7.92mm

Nominal Gerilim

1000V

Contact Length Post

0.146 3.70mm

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

JESD-609 Kodu

e2

Option

GENERAL PURPOSE

Contact Lengthmating

0.354 9.00mm

Filter Feature

NO

Kurşunsuz

Lead Free
