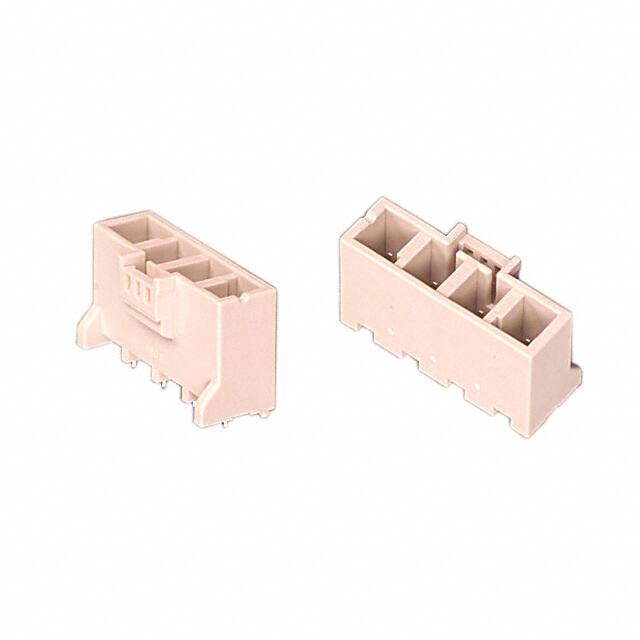

DF22-4P-7.92DSA(05)

Teknik Özellikler

Mil Conformance

NO

Contact Finish Thickness Mating

39.4μin 1.00μm

Orientation

Straight

Housing Material

Polyamide

Pitch Mating

0.312 7.92mm

Pozisyon Sayısı

4

Contact Shape

Square

Housing Color

Natural

Material Flammability Rating

UL94 V-0

Insulation Height

0.713 18.10mm

Contact Finish Mating

Tin-Copper

Seri

EnerBee™ DF22

Ambalaj

Bulk

Style

Board to Cable/Wire

Current Rating Amps

22A

Contact Type

Male Pin

Stack Height Mating

25.7mm 28.7mm

ECCN Kodu

EAR99

Connector Type

Header

Fabrika Tedarik Süresi

12 Weeks

Insulation Materials

Polyamide (PA), Nylon

Din Conformance

NO

Gender

Male

Mixed Contacts

NO

Çalışma Sıcaklığı

-35°C~85°C

Uzunluk

33.06mm

Radyasyon Dayanımı

No

Reach Svhc

Unknown

Contact Plating

Tin

Iec Conformance

NO

Kurşunsuz

Lead Free

Filter Feature

NO

Contact Lengthmating

0.354 9.00mm

Option

GENERAL PURPOSE

JESD-609 Kodu

e2

Contact Resistance

5mOhm

Max Voltage Rating Ac

1kV

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Contact Length Post

0.146 3.70mm
