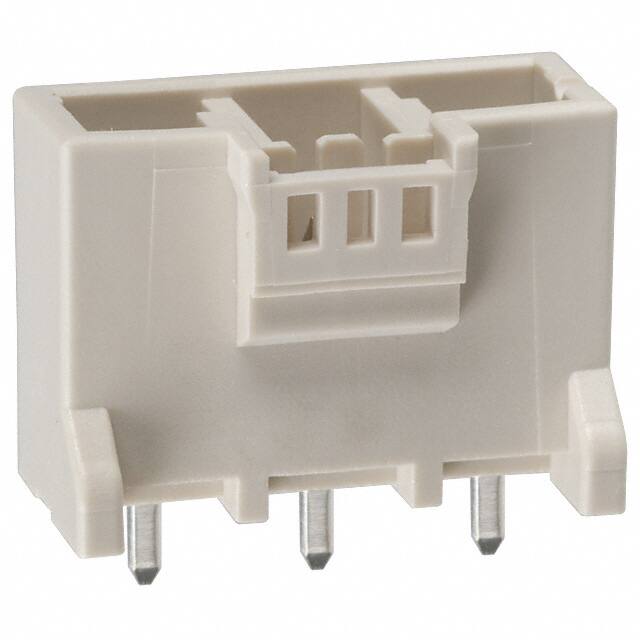

DF22-3P-7.92DSA(05)

Teknik Özellikler

Iec Conformance

NO

Contact Plating

Tin

Contact Lengthmating

0.354 9.00mm

Option

GENERAL PURPOSE

Kurşunsuz

Lead Free

Filter Feature

NO

Contact Resistance

5mOhm

Shrouding

Shrouded - 4 Wall

Max Voltage Rating Ac

1kV

JESD-609 Kodu

e2

Nominal Gerilim

1000V

Lead Pitch

7.92mm

Parça Durumu

Active

Contact Length Post

0.146 3.70mm

Özellikler

Board Guide

Insulation Color

Beige

Fastening Type

Latch Holder

Number Of Positions Loaded

All

Depth

12.45mm

Sıra Sayısı

1

Montaj

Through Hole

Contact Materials

Copper Alloy

Kurşunsuz Kodu

yes

Additional Feature

PANEL MOUNTABLE

Akım Değeri

25A

Montaj Tipi

Through Hole

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Mil Conformance

NO

Housing Material

Polyamide

Contact Finish Thickness Mating

39.4μin 1.00μm

Orientation

Straight

Pitch Mating

0.312 7.92mm

Housing Color

Natural

Pozisyon Sayısı

3

Contact Shape

Square

Material Flammability Rating

UL94 V-0

Seri

EnerBee™ DF22

Ul Flammability Code

94V-0
