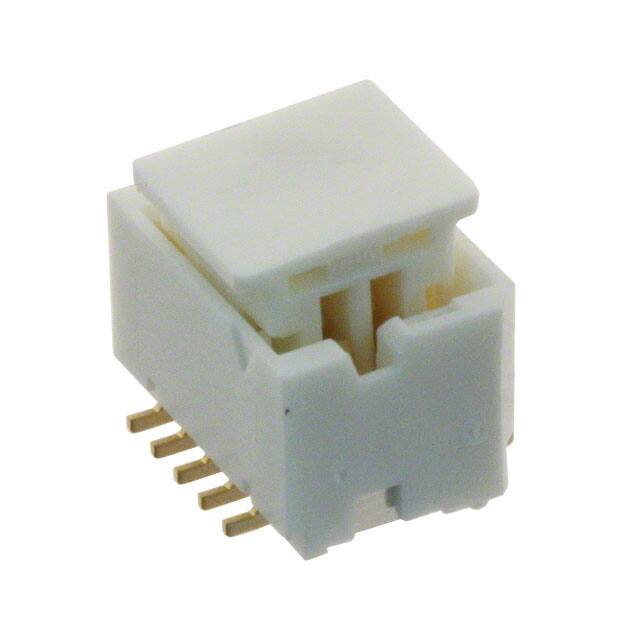

DF20G-10DP-1V(56)

Teknik Özellikler

Ambalaj

Tape & Reel (TR)

Ul Flammability Code

94V-0

Insulation Height

0.181 4.60mm

Contact Finish Mating

Gold

Seri

DF20

Max Current Rating

1A

Durability

50 Cycles

Insertion Forcemax

1.946 N

Row Spacing Mating

0.039 (1.00mm)

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

10

Contact Shape

Square

Contact Gender

Male

Pitch Mating

0.039 1.00mm

Orientation

Straight

Housing Material

Polyamide

Mil Conformance

NO

Reference Standard

UL

Insulation Resistance

500000000Ohm

Radyasyon Dayanımı

No

Polarization Key

POLARIZED HOUSING

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-35°C~85°C

Uzunluk

7.3mm

Din Conformance

NO

Mixed Contacts

NO

Reliability

COMMERCIAL

Number Of Conductors

ONE

Insulation Materials

Polyamide (PA), Nylon

Total Number Of Contacts

10

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Style

Board to Cable/Wire

Contact Type

Male Pin

Stack Height Mating

5.8mm

Number Of Positions Loaded

All

Fastening Type

Push-Pull

Özellikler

Board Guide, Pick and Place, Solder Retention

Insulation Color

Natural
