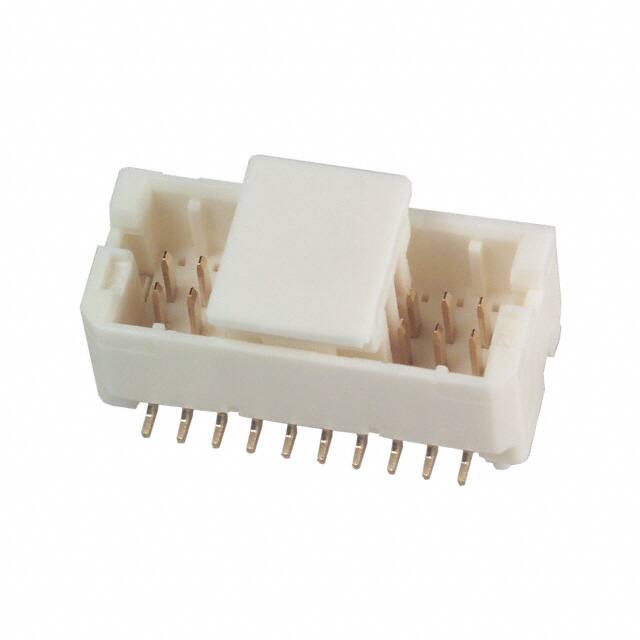

DF20F-20DP-1V(56)

Teknik Özellikler

Total Number Of Contacts

20

Insulation Materials

Polyamide (PA), Nylon

Number Of Conductors

ONE

Contact Type

Male Pin

Stack Height Mating

5.8mm

ECCN Kodu

EAR99

Style

Board to Cable/Wire

Fabrika Tedarik Süresi

12 Weeks

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Header

Radyasyon Dayanımı

No

Polarization Key

POLARIZED HOUSING

Insulation Resistance

500000000Ohm

Reference Standard

UL

Mixed Contacts

NO

Reliability

COMMERCIAL

Din Conformance

NO

Uzunluk

12.3mm

Çalışma Sıcaklığı

-35°C~85°C

Pitch Mating

0.039 1.00mm

Contact Gender

Male

HTS Kodu

8536.69.40.40

Pozisyon Sayısı

20

Contact Shape

Square

Mil Conformance

NO

Housing Material

Polyamide

Contact Finish Thickness Mating

8.00μin 0.203μm

Orientation

Straight

Seri

DF20

Contact Finish Mating

Gold

Insulation Height

0.181 4.60mm

Ul Flammability Code

94V-0

Ambalaj

Tape & Reel (TR)

Row Spacing Mating

0.039 (1.00mm)

Material Flammability Rating

UL94 V-0

Max Current Rating

1A

Durability

50 Cycles

Sıra Sayısı

2

Dielectric Withstanding Voltage

300VAC V

Montaj

Surface Mount
