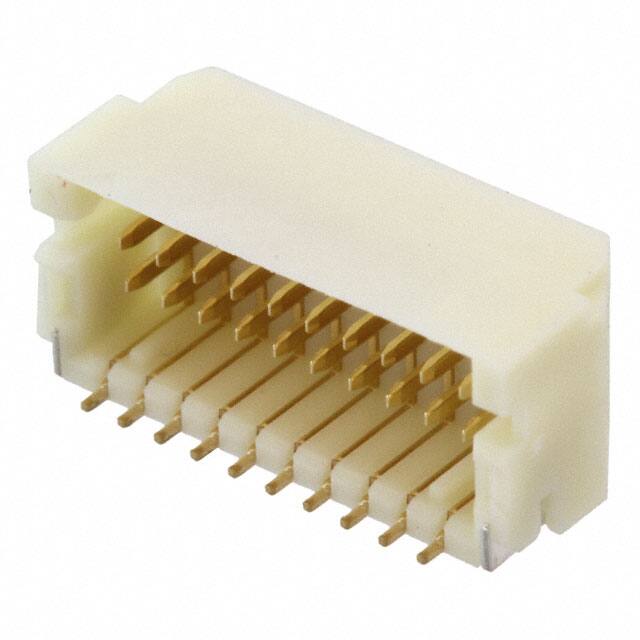

DF20F-20DP-1H(50)

Teknik Özellikler

Radyasyon Dayanımı

No

Polarization Key

POLARIZED HOUSING

Insulation Resistance

500000000Ohm

Reach Svhc

No SVHC

Reference Standard

UL

Uzunluk

12.5mm

Çalışma Sıcaklığı

-35°C~85°C

Mixed Contacts

NO

Reliability

COMMERCIAL

Din Conformance

NO

Insulation Materials

Polyamide (PA), Nylon

Number Of Conductors

ONE

Total Number Of Contacts

20

Rated Current Signal

1A

Fabrika Tedarik Süresi

12 Weeks

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Header

Contact Type

Male Pin

ECCN Kodu

EAR99

Style

Board to Cable/Wire

Ambalaj

Tube

Seri

DF20

Ul Flammability Code

94V-0

Insulation Height

0.217 5.51mm

Contact Finish Mating

Gold

Max Current Rating

1A

Durability

50 Cycles

Row Spacing Mating

0.039 (1.00mm)

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

20

Contact Shape

Square

Pitch Mating

0.039 1.00mm

HTS Kodu

8536.69.40.40

Housing Material

Polyamide

Contact Finish Thickness Mating

8.00μin 0.203μm

Orientation

Right Angle

Mil Conformance

NO

Wire Gauge Min

32 AWG

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder
