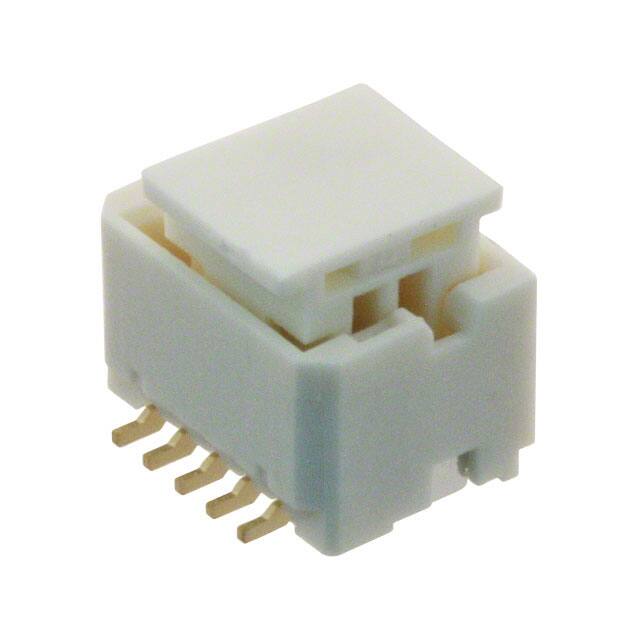

DF20F-10DP-1V(56)

Teknik Özellikler

Max Current Rating

1A

Durability

50 Cycles

Row Spacing Mating

0.039 (1.00mm)

Material Flammability Rating

UL94 V-0

Ambalaj

Tape & Reel (TR)

Seri

DF20

Ul Flammability Code

94V-0

Insulation Height

0.181 4.60mm

Contact Finish Mating

Gold

Housing Material

Polyamide

Contact Finish Thickness Mating

8.00μin 0.203μm

Orientation

Straight

Mil Conformance

NO

Pozisyon Sayısı

10

Contact Shape

Square

Pitch Mating

0.039 1.00mm

HTS Kodu

8536.69.40.40

Contact Gender

Male

Uzunluk

7.3mm

Çalışma Sıcaklığı

-35°C~85°C

Mixed Contacts

NO

Reliability

COMMERCIAL

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Insulation Resistance

500000000Ohm

Reach Svhc

No SVHC

Reference Standard

UL

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Type

Male Pin

Stack Height Mating

5.8mm

ECCN Kodu

EAR99

Style

Board to Cable/Wire

Insulation Materials

Polyamide (PA), Nylon

Number Of Conductors

ONE

Total Number Of Contacts

10

Yayın Yılı

2002

REACH Uyumluluk Kodu

unknown

Özellikler

Pick and Place, Solder Retention
