Adet bazlı fiyat
- 1+ adet$1.84
- 10+ adet$1.73
- 100+ adet$1.64
- 500+ adet$1.54
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

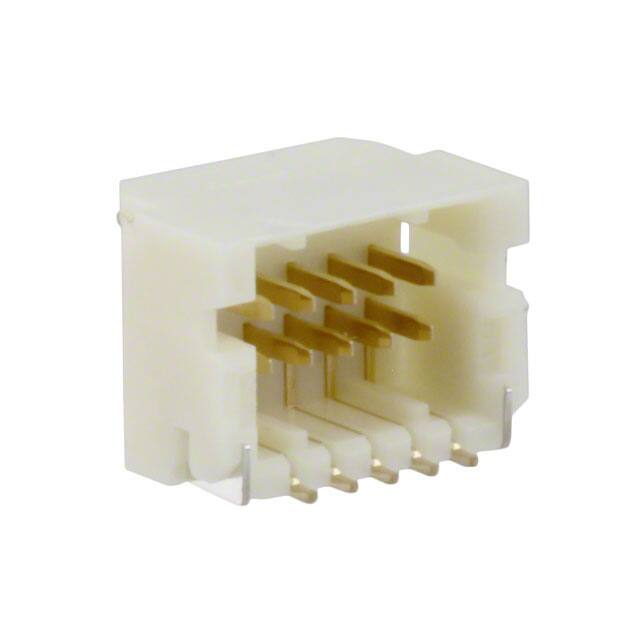

Teknik Özellikler
- Pitch Mating
- 0.039 1.00mm
- Contact Gender
- Male
- HTS Kodu
- 8536.69.40.40
- Pozisyon Sayısı
- 10
- Contact Shape
- Square
- Mil Conformance
- NO
- Housing Material
- Polyamide
- Contact Finish Thickness Mating
- 8.00μin 0.203μm
- Orientation
- Right Angle
- Seri
- DF20
- Ul Flammability Code
- 94V-0
- Insulation Height
- 0.217 5.51mm
- Contact Finish Mating
- Gold
- Ambalaj
- Tube
- Row Spacing Mating
- 0.039 (1.00mm)
- Material Flammability Rating
- UL94 V-0
- Max Current Rating
- 1A
- Durability
- 50 Cycles
- Total Number Of Contacts
- 10
- Insulation Materials
- Polyamide (PA), Nylon
- Number Of Conductors
- ONE
- Contact Type
- Male Pin
- ECCN Kodu
- EAR99
- Style
- Board to Cable/Wire
- Rated Current Signal
- 1A
- Fabrika Tedarik Süresi
- 10 Weeks
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Connector Type
- Header
- Insulation Resistance
- 500MOhm
- Radyasyon Dayanımı
- No
- Polarization Key
- POLARIZED HOUSING
- Reach Svhc
- No SVHC
- Reference Standard
- UL
- Mixed Contacts
- NO
- Reliability
- COMMERCIAL
- Din Conformance
- NO
- Uzunluk
- 7.5mm
- Çalışma Sıcaklığı
- -35°C~85°C
- Option
- GENERAL PURPOSE
- Number Of Pcb Rows
- 2
