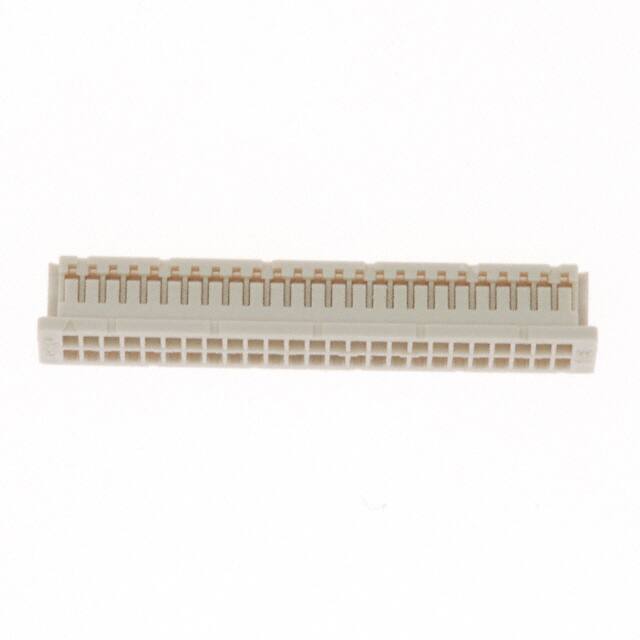

DF20A-50DS-1C

Teknik Özellikler

Contact Termination

Crimp

Ambalaj

Bulk

Contact Finish Mating

NOT SPECIFIED

Ul Flammability Code

94V-0

Seri

DF20

Yayın Yılı

2002

REACH Uyumluluk Kodu

unknown

Parça Durumu

Active

Operating Temperature Max

85°C

Renk

Beige

Lead Pitch

1mm

Body Depth

0.161 inch

Pozisyon Sayısı

50

Contact Resistance

30mOhm

Kurşunsuz

Lead Free

HTS Kodu

8536.69.40.40

Filter Feature

NO

Option

WITH CABLE ASSEMBLY

Housing Material

Plastic

Contact Plating

Gold

Mil Conformance

NO

Iec Conformance

NO

Mounting Option1

LOCKING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Free Hanging (In-Line)

Reference Standard

UL

RoHS Durumu

RoHS Compliant

Polarization Key

POLARIZED HOUSING

Note

Contacts Not Included

Body Breadth

0.197 inch

Din Conformance

NO

Mixed Contacts

NO

Reliability

COMMERCIAL

Kurşunsuz Kodu

yes

Contact Materials

NOT SPECIFIED

Dielectric Withstanding Voltage

300VAC V

Sıra Sayısı

2

Total Number Of Contacts

50

Operating Temperature Min

-35°C

Pitch

0.039 1.00mm
