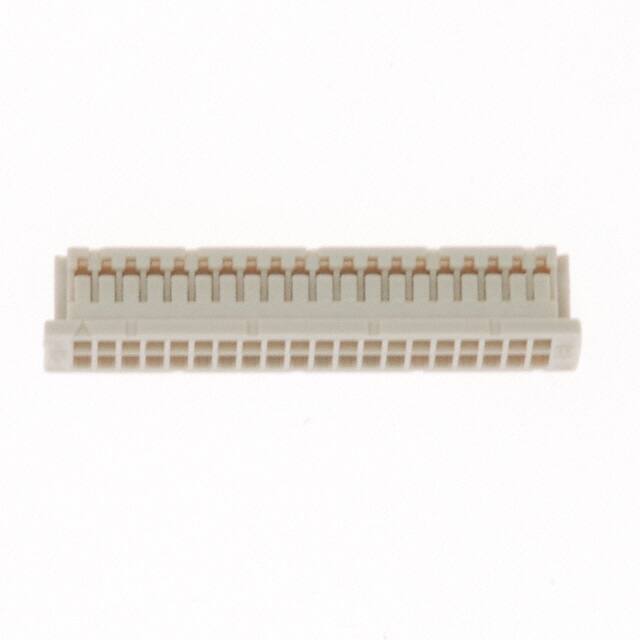

DF20A-40DS-1C

Teknik Özellikler

Parça Durumu

Active

Operating Temperature Max

85°C

Body Depth

0.161 inch

Lead Pitch

1mm

Renk

Beige

Durability

50 Cycles

REACH Uyumluluk Kodu

unknown

Yayın Yılı

2002

Ul Flammability Code

94V-0

Seri

DF20

Contact Termination

Crimp

Ambalaj

Bulk

Contact Plating

Gold

Iec Conformance

NO

Mil Conformance

NO

Withdrawl Forcemin

.1946 N

Housing Material

Plastic

Filter Feature

NO

Kurşunsuz

Lead Free

Option

WITH CABLE ASSEMBLY

Pozisyon Sayısı

40

JESD-609 Kodu

e4

Din Conformance

NO

Reliability

COMMERCIAL

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Montaj Tipi

Free Hanging (In-Line)

RoHS Durumu

RoHS Compliant

Reference Standard

UL

Body Breadth

0.197 inch

Note

Contacts Not Included

Insulation Resistance

500000000Ohm

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

0.874 inch

ECCN Kodu

EAR99

Contact Type

Female Socket

Row Spacing

0.039 (1.00mm)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Type

Receptacle
