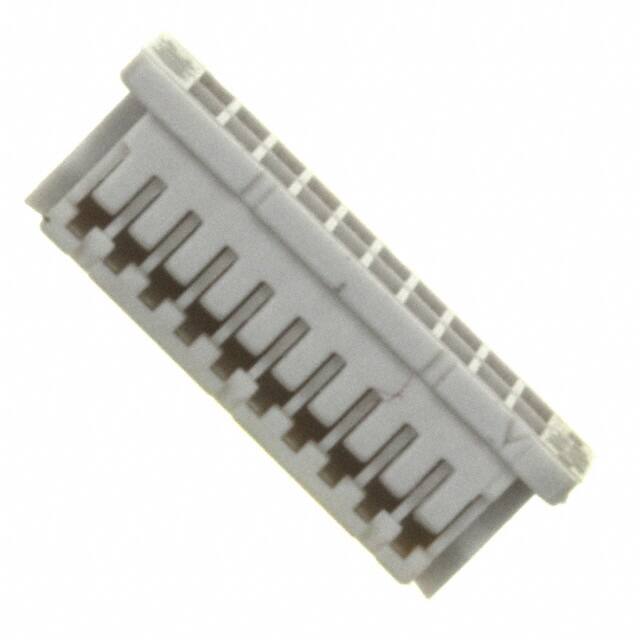

DF20A-20DS-1C

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Body Breadth

0.197 inch

Montaj Tipi

Free Hanging (In-Line)

RoHS Durumu

RoHS Compliant

Number Of Contacts

20

Kurşunsuz Kodu

yes

Dielectric Withstanding Voltage

300VAC V

Contact Materials

PHOSPHOR BRONZE

Sıra Sayısı

2

REACH Uyumluluk Kodu

unknown

Yayın Yılı

2002

Lead Pitch

1mm

Renk

Beige

Parça Durumu

Active

Contact Resistance

30mOhm

JESD-609 Kodu

e4

Option

WITH CABLE ASSEMBLY

Filter Feature

NO

Kurşunsuz

Lead Free

Iec Conformance

NO

Contact Plating

Gold

Note

Contacts Not Included

Polarization Key

POLARIZED HOUSING

Insulation Resistance

500000000Ohm

Reference Standard

UL

Reliability

COMMERCIAL

Mixed Contacts

NO

Din Conformance

NO

Operating Temperature Min

-35°C

Pitch

0.039 1.00mm

Fabrika Tedarik Süresi

12 Weeks

Connector Type

Receptacle

Mating Information

MULTIPLE MATING PARTS AVAILABLE

ECCN Kodu

EAR99

Contact Type

Female Socket

Row Spacing

0.039 (1.00mm)

Body Length Or Diameter

0.48 inch

Ambalaj

Bulk

Contact Termination

Crimp
