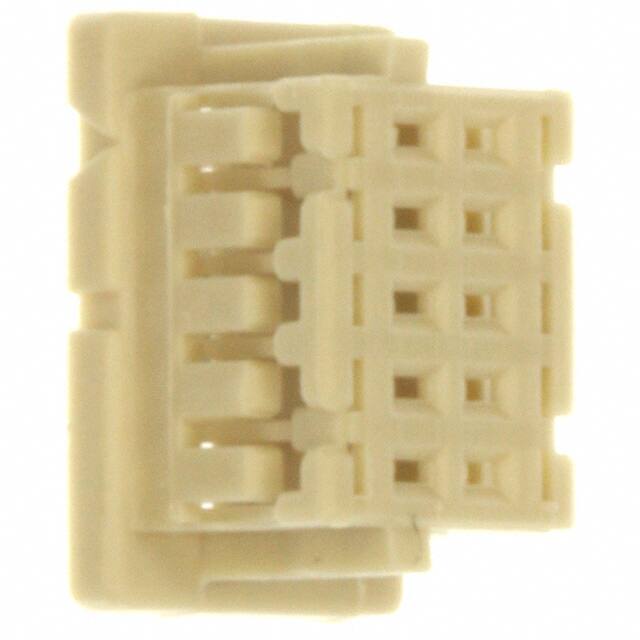

DF20A-10DS-1C

Teknik Özellikler

Contact Termination

Crimp

Ambalaj

Bulk

Ul Flammability Code

94V-0

Seri

DF20

Durability

50 Cycles

REACH Uyumluluk Kodu

unknown

Yayın Yılı

2002

Parça Durumu

Active

Operating Temperature Max

85°C

Lead Pitch

1mm

Body Depth

0.161 inch

Renk

Beige

JESD-609 Kodu

e4

Contact Resistance

30mOhm

Filter Feature

NO

Kurşunsuz

Lead Free

HTS Kodu

8536.69.40.40

Option

WITH CABLE ASSEMBLY

Orientation

Straight

Housing Material

Plastic

Contact Plating

Gold

Mil Conformance

NO

Iec Conformance

NO

Mounting Option1

LOCKING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Free Hanging (In-Line)

RoHS Durumu

RoHS Compliant

Reference Standard

UL

Number Of Contacts

10

Body Breadth

0.197 inch

Note

Contacts Not Included

Polarization Key

POLARIZED HOUSING

Insulation Resistance

500000000Ohm

Din Conformance

NO

Kurşunsuz Kodu

yes

Reliability

COMMERCIAL

Mixed Contacts

NO

Contact Materials

PHOSPHOR BRONZE

Dielectric Withstanding Voltage

300VAC V

Sıra Sayısı

2
