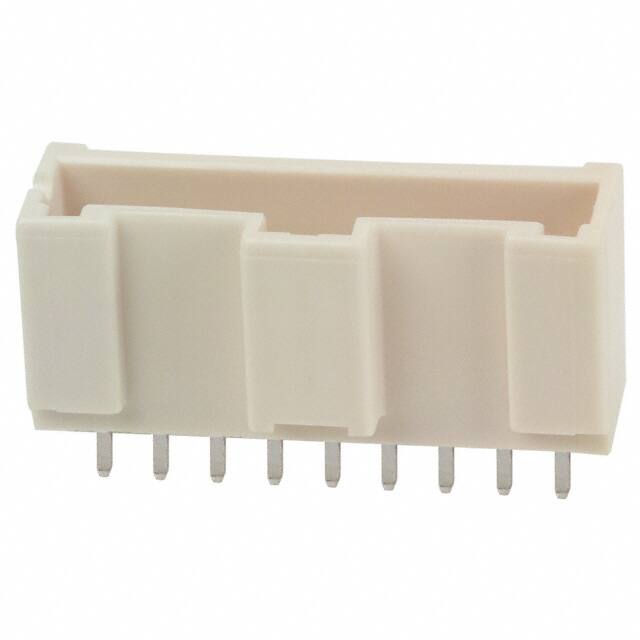

DF1EC-9P-2.5DSA(05)

Teknik Özellikler

Contact Finish Thickness Mating

39.4μin 1.00μm

Orientation

Straight

Housing Material

Polyamide

Mil Conformance

NO

Pozisyon Sayısı

9

Contact Shape

Square

Contact Gender

Male

Pitch Mating

0.098 2.50mm

Max Current Rating

3A

Durability

30 Cycles

Insertion Forcemax

4.448 N

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Insulation Height

0.425 10.80mm

Contact Finish Mating

Tin

Seri

DF1E

Connector Type

Header

Rated Current Signal

3A

Style

Board to Cable/Wire

Contact Type

Male Pin

Stack Height Mating

14.3mm 15.8mm 19.8mm

Number Of Conductors

ONE

Insulation Materials

Polyamide (PA), Nylon

Çalışma Sıcaklığı

-35°C~85°C

Uzunluk

25mm

Din Conformance

NO

Mixed Contacts

NO

Reliability

COMMERCIAL

Reference Standard

UL

Radyasyon Dayanımı

No

Polarization Key

POLARIZED HOUSING

Pcb Contact Pattern

RECTANGULAR

Iec Conformance

NO

JESD-609 Kodu

e3

Contact Resistance

30mOhm

Shrouding

Shrouded - 4 Wall

Max Voltage Rating Ac

250V

Kurşunsuz

Lead Free

Number Of Pcb Rows

1

Filter Feature

NO
