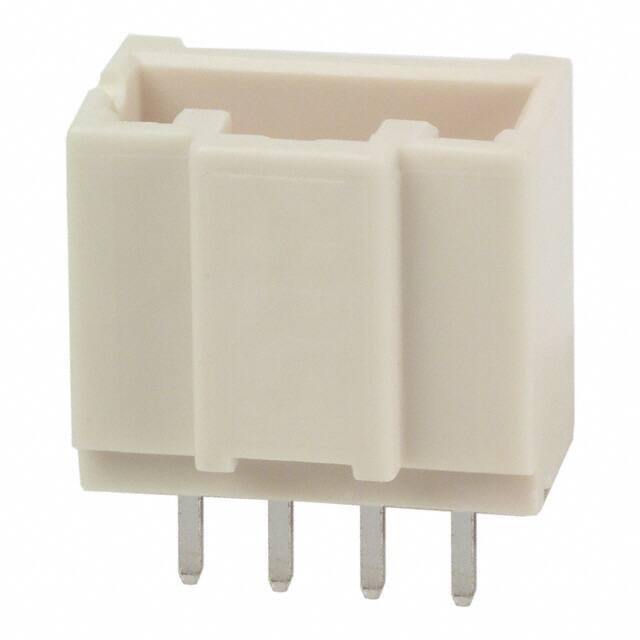

DF1EC-4P-2.5DSA(35)

Teknik Özellikler

Insulation Height

0.425 10.80mm

Contact Finish Mating

Tin

Fastening Type

Latch Holder

Seri

DF1E

Number Of Positions Loaded

All

Ambalaj

Bulk

Contact Length Post

0.142 3.60mm

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Insulation Color

Natural

REACH Uyumluluk Kodu

unknown

Contact Lengthmating

0.177 4.50mm

Pitch Mating

0.098 2.50mm

Pozisyon Sayısı

4

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness Mating

39.4μin 1.00μm

Montaj Tipi

Through Hole

RoHS Durumu

RoHS Compliant

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-35°C~85°C

Sıra Sayısı

1

Contact Materials

Brass

Montaj

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Cable/Wire

Current Rating Amps

3A

Contact Type

Male Pin

Stack Height Mating

14.3mm 15.8mm 19.8mm

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks
