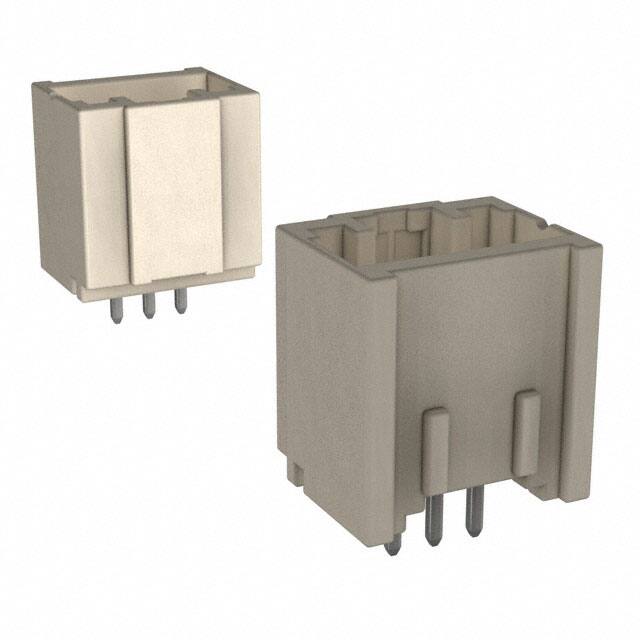

DF1EC-3P-2.5DSA(36)

Teknik Özellikler

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-35°C~85°C

Contact Materials

Brass

Insulation Materials

Polyamide (PA), Nylon

Montaj

Through Hole

Sıra Sayısı

1

Connector Type

Header

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

3A

Style

Board to Cable/Wire

Stack Height Mating

14.3mm 15.8mm 19.8mm

ECCN Kodu

EAR99

Contact Type

Male Pin

Number Of Positions Loaded

All

Ambalaj

Bulk

Contact Finish Mating

Tin

Insulation Height

0.425 10.80mm

Seri

DF1E

Fastening Type

Latch Holder

Insulation Color

Natural

REACH Uyumluluk Kodu

unknown

Contact Length Post

0.142 3.60mm

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Contact Shape

Square

Pozisyon Sayısı

3

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.098 2.50mm

Contact Lengthmating

0.177 4.50mm

Contact Finish Thickness Mating

39.4μin 1.00μm
