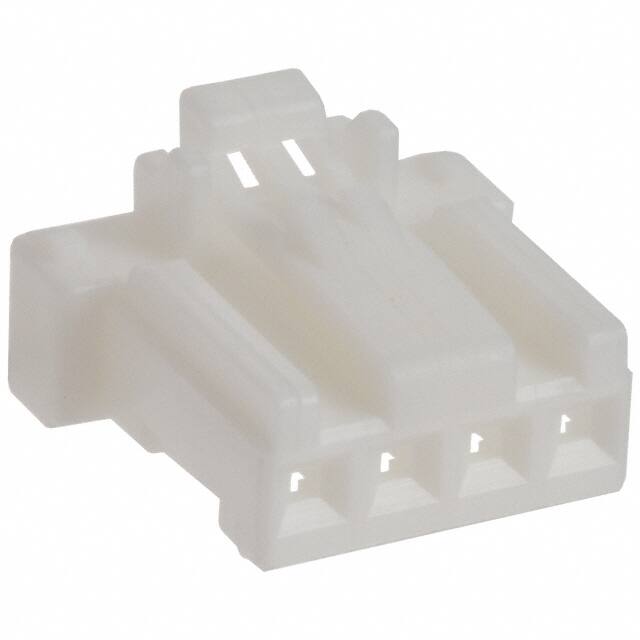

DF1E-4S-2.5C

Teknik Özellikler

Durability

30 Cycles

Max Current Rating

3A

Contact Finish Mating

NOT SPECIFIED

Seri

DF1E

Contact Termination

Crimp

Ambalaj

Bulk

Mil Conformance

NO

Orientation

Straight

Housing Material

Polyamide

Contact Gender

Female

Pozisyon Sayısı

4

Din Conformance

NO

Reliability

COMMERCIAL

Mixed Contacts

NO

Uzunluk

13mm

Reference Standard

UL

Voltage Rated Ac

250V

Note

Contacts Not Included

Polarization Key

POLARIZED HOUSING

Wire Size Min

22 AWG

Contact Type

Female Socket

Connector Type

Receptacle

Yükseklik

7.55mm

Fabrika Tedarik Süresi

10 Weeks

Rated Current Signal

3A

Total Number Of Contacts

4

Pitch

0.098 2.50mm

Parça Durumu

Active

Nominal Gerilim

250V

Renk

White

REACH Uyumluluk Kodu

unknown

Fastening Type

Latch Lock

Contact Plating

Tin

Iec Conformance

NO

Wire Size Max

20 AWG

Filter Feature

NO

Kurşunsuz

Lead Free

Option

GENERAL PURPOSE

Max Voltage Rating Ac

250V

Contact Resistance

30mOhm
