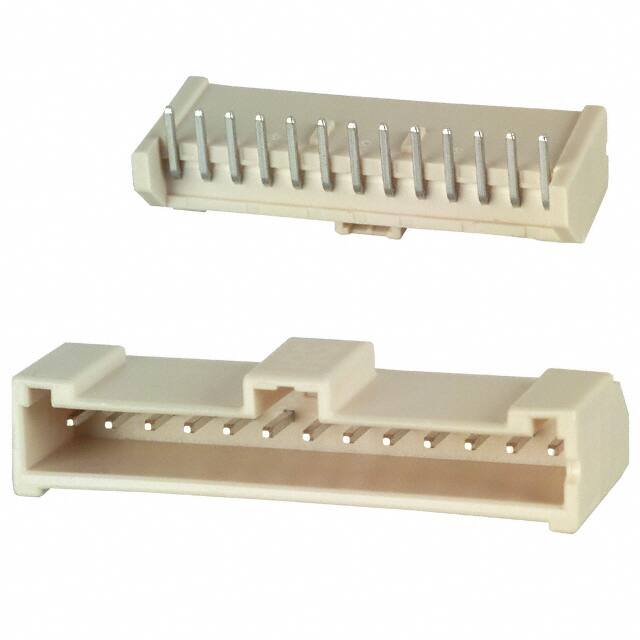

DF1E-13P-2.5DS(05)

Teknik Özellikler

Mil Conformance

NO

Contact Finish Thickness Mating

39.4μin 1.00μm

Orientation

Right Angle

Housing Material

Polyamide

HTS Kodu

8536.69.40.40

Pitch Mating

0.098 2.50mm

Contact Shape

Square

Pozisyon Sayısı

13

Insertion Forcemax

4.448 N

Material Flammability Rating

UL94 V-0

Durability

30 Cycles

Max Current Rating

3A

Contact Finish Mating

Tin

Insulation Height

0.315 8.00mm

Ul Flammability Code

94V-0

Seri

DF1E

Ambalaj

Bulk

Style

Board to Cable/Wire

ECCN Kodu

EAR99

Contact Type

Male Pin

Connector Type

Header

Yükseklik

8mm

Rated Current Signal

3A

Number Of Conductors

ONE

Insulation Materials

Polyamide (PA), Nylon

Din Conformance

NO

Gender

Male

Reliability

COMMERCIAL

Mixed Contacts

NO

Çalışma Sıcaklığı

-35°C~85°C

Uzunluk

35mm

Reference Standard

UL

Voltage Rated Ac

250V

Polarization Key

POLARIZED HOUSING

Iec Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Filter Feature

NO

Number Of Pcb Rows

1

Kurşunsuz

Lead Free

Option

GENERAL PURPOSE
