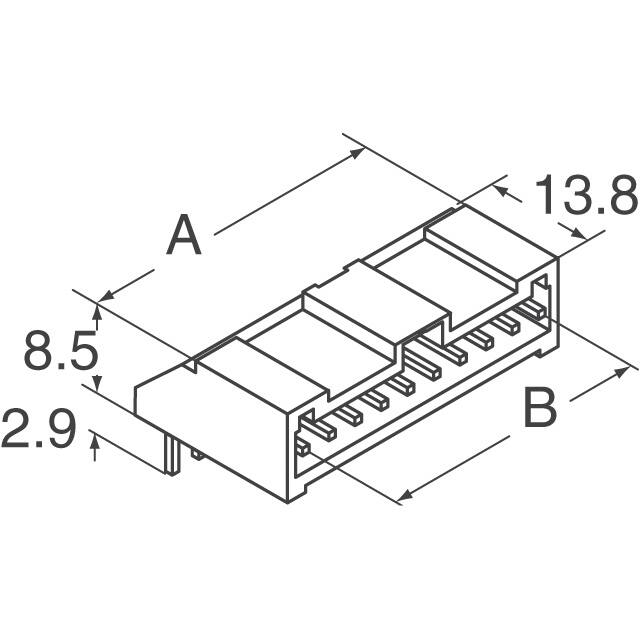

DF1E-10P-2.5DS(36)

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Contact Length Post

0.114 2.90mm

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Insulation Color

Natural

Fastening Type

Latch Holder

Seri

DF1E

Contact Finish Mating

Gold

Insulation Height

0.315 8.00mm

Ambalaj

Bulk

Pcb Contact Pattern

RECTANGULAR

Contact Plating

Tin

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Lengthmating

0.177 4.50mm

Pitch Mating

0.098 2.50mm

Number Of Pcb Rows

1

Contact Resistance

30mOhm

Shrouding

Shrouded - 4 Wall

Pozisyon Sayısı

10

Contact Shape

Square

Reliability

COMMERCIAL

Terminal Adımı

2.4892mm

Çalışma Sıcaklığı

-35°C~85°C

Reference Standard

UL

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole, Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Contact Type

Male Pin

Mating Contact Pitch

0.098 inch

Style

Board to Cable/Wire

Current Rating Amps

3A

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Sıra Sayısı

1

Insulation Materials

Polyamide (PA), Nylon

Montaj

Through Hole

Number Of Conductors

ONE

Contact Materials

Brass
