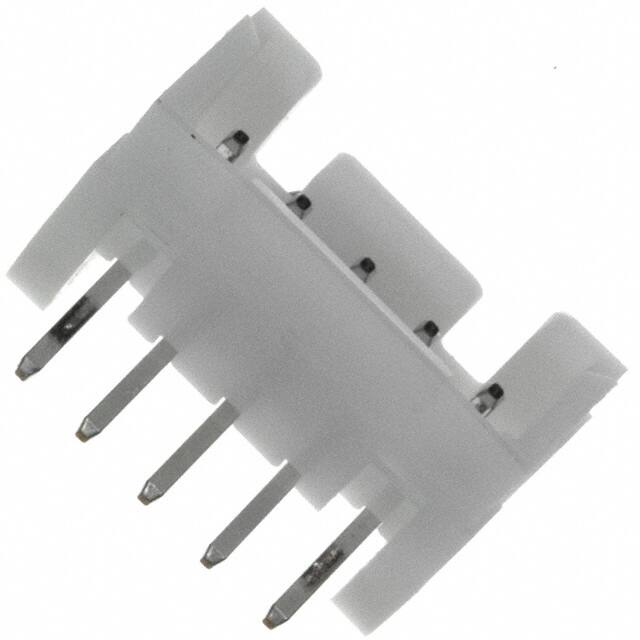

DF1BZ-5P-2.5DS

Teknik Özellikler

Iec Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Contact Resistance

30mOhm

Shrouding

Shrouded - 4 Wall

JESD-609 Kodu

e3/e4

Contact Lengthmating

0.177 4.50mm

Option

GENERAL PURPOSE

Kurşunsuz

Lead Free

Filter Feature

NO

Number Of Pcb Rows

1

REACH Uyumluluk Kodu

unknown

Özellikler

Keying Slot

Lead Pitch

2.5mm

Nominal Gerilim

150V

Contact Length Post

0.142 3.60mm

Parça Durumu

Active

Number Of Positions Loaded

All

Wire Gauge Max

30 AWG

Fastening Type

Push-Pull

Mating Contact Pitch

0.098 inch

Montaj

Through Hole

Contact Materials

Brass

Sıra Sayısı

1

Kurşunsuz Kodu

yes

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Montaj Tipi

Through Hole, Right Angle

RoHS Durumu

RoHS Compliant

Housing Material

Plastic

Contact Finish Thickness Mating

39.4μin 1.00μm

Mil Conformance

NO

Wire Gauge Min

20 AWG

Housing Color

White

Pozisyon Sayısı

5

Contact Shape

Square

Pitch Mating

0.098 2.50mm

Contact Gender

Male

Durability

30 Cycles

Material Flammability Rating

UL94 V-0
