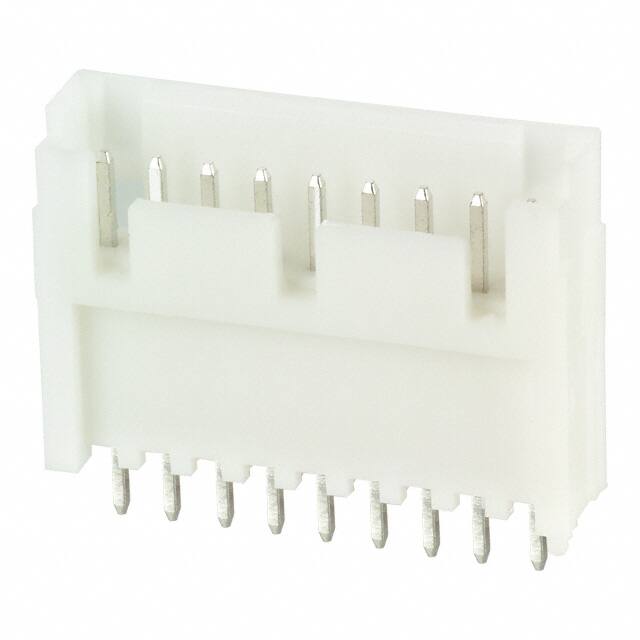

DF1BD-9P-2.5DSA(05)

Teknik Özellikler

Contact Length Post

0.118 3.00mm

Stack Height Mating

14mm

Mil Conformance

NO

Dielectric Withstanding Voltage

650VAC V

Montaj

Through Hole

Pitch Mating

0.098 2.50mm

Seri

DF1B

Reference Standard

UL

Reliability

COMMERCIAL

Özellikler

Board Guide, Keying Slot

RoHS Durumu

RoHS Compliant

Number Of Conductors

ONE

Pozisyon Sayısı

9

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Contact Finish Mating

Tin

Fastening Type

Push-Pull

Mixed Contacts

NO

Contact Lengthmating

0.177 4.50mm

Kurşunsuz

Lead Free

Filter Feature

NO

Option

WATERPROOF

Terminal

Solder

Din Conformance

NO

Gender

Male

Lead Pitch

2.5mm

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Insulation Height

0.689 17.50mm

Durability

30 Cycles

Number Of Positions Loaded

All

Contact Resistance

30mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Contact Type

Male Pin

Housing Material

Plastic

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA), Nylon

Parça Durumu

Active
