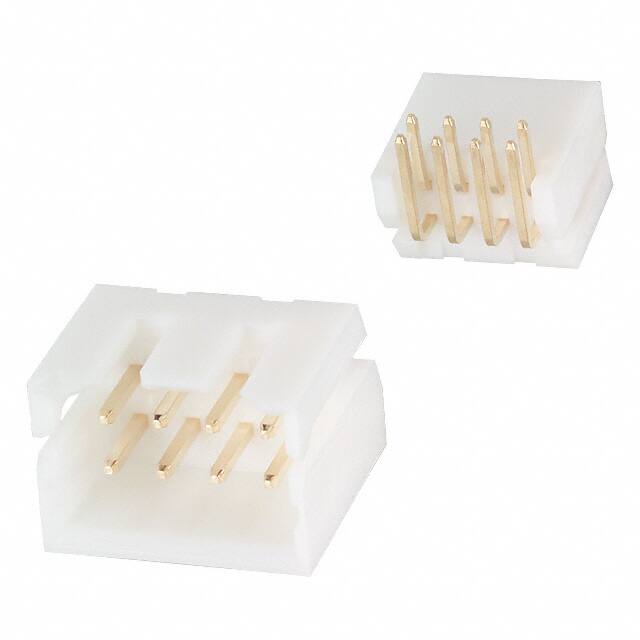

DF1B-8DP-2.5DS(01)

Teknik Özellikler

Filter Feature

NO

Ul Flammability Code

94V-0

Max Current Rating

3A

Option

GENERAL PURPOSE

Din Conformance

NO

Terminal

Solder

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Mating

Gold

Fastening Type

Push-Pull

Mixed Contacts

NO

Body Breadth

0.339 inch

Contact Lengthmating

0.177 4.50mm

Kurşunsuz

Lead Free

Max Voltage Rating Ac

250V

Pitch Mating

0.098 2.50mm

Seri

DF1B

Reference Standard

UL, CSA

Reliability

COMMERCIAL

ECCN Kodu

EAR99

Özellikler

Keying Slot

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

8

Montaj Tipi

Through Hole, Right Angle

Withdrawl Forcemin

.417 N

Contact Length Post

0.130 3.30mm

Mil Conformance

NO

Dielectric Withstanding Voltage

650VAC V

Montaj

Through Hole

Akım Değeri

3A

Contact Materials

Brass

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Yükseklik

8.6mm

Number Of Pcb Rows

2

Connector Type

Header

Polarization Key

POLARIZED HOUSING

Contact Gender

Male

JESD-609 Kodu

e3/e4
