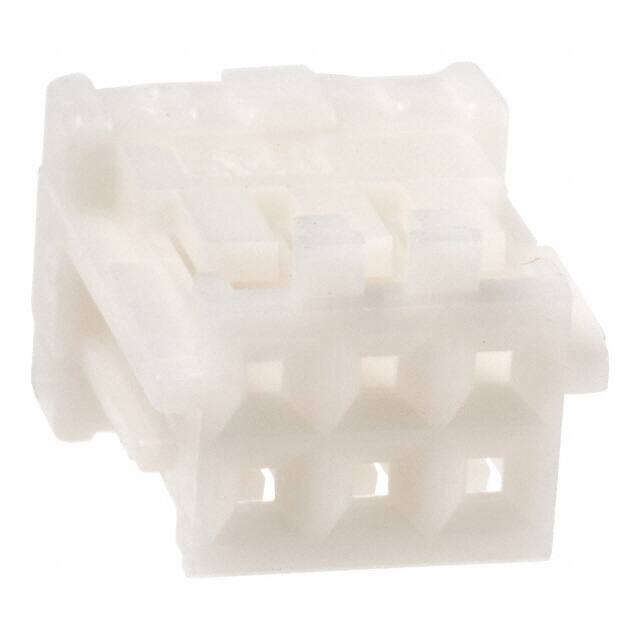

DF1B-6DS-2.5RC

Teknik Özellikler

Insulation Resistance

1000000000Ohm

Pitch

0.098 2.50mm

Kurşunsuz Kodu

yes

Total Number Of Contacts

6

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

30mOhm

Contact Type

Female Socket

Contact Termination

Crimp, IDC

Uzunluk

10mm

Ambalaj

Bulk

Depth

11.5mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Material

Polyamide

REACH Uyumluluk Kodu

unknown

Parça Durumu

Active

Orientation

Straight

Sıra Sayısı

2

Renk

White

Connector Type

Receptacle

Yükseklik

8mm

Contact Materials

PHOSPHOR COPPER

Akım Değeri

3A

Rated Current Signal

3A

JESD-609 Kodu

e3/e4

Contact Gender

Female

Row Spacing

0.098 (2.50mm)

Maks. Çalışma Sıcaklığı

85°C

Mil Conformance

NO

Note

Contacts Not Included

Montaj

Free Hanging

ECCN Kodu

EAR99

Reliability

COMMERCIAL

Seri

DF1B

Reference Standard

UL

Voltage Rated Ac

250V

Montaj Tipi

Free Hanging (In-Line)

Pozisyon Sayısı

6

RoHS Durumu

RoHS Compliant

Mixed Contacts

NO

Contact Finish Mating

TIN/GOLD
