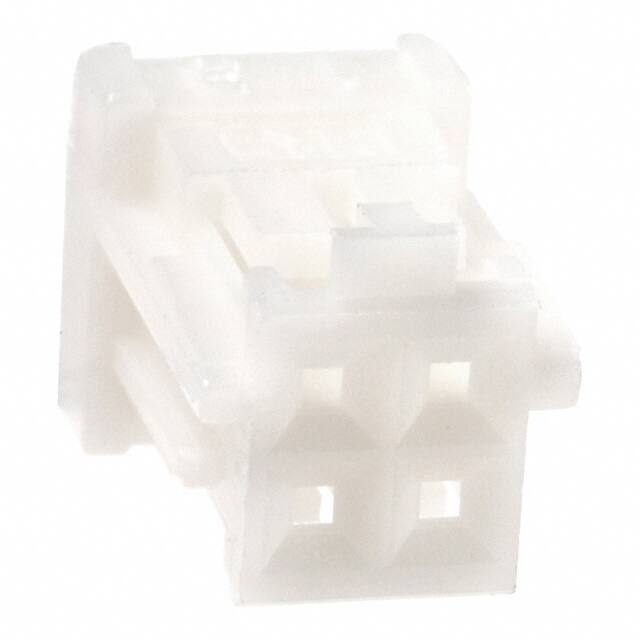

DF1B-4DS-2.5RC

Teknik Özellikler

Mil Conformance

NO

Dielectric Withstanding Voltage

650VAC V

Montaj

Free Hanging

Note

Contacts Not Included

Seri

DF1B

Reference Standard

UL

Reliability

COMMERCIAL

ECCN Kodu

EAR99

Voltage Rated Ac

250V

Pozisyon Sayısı

4

Montaj Tipi

Free Hanging (In-Line)

RoHS Durumu

RoHS Compliant

Mixed Contacts

NO

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Max Voltage Rating Ac

250V

Kurşunsuz

Lead Free

Contact Plating

Gold

Max Current Rating

3A

Option

GENERAL PURPOSE

Filter Feature

NO

Din Conformance

NO

Terminal

IDC

Min. Çalışma Sıcaklığı

-35°C

Pitch

0.098 2.50mm

Insulation Resistance

1000000000Ohm

Kurşunsuz Kodu

yes

Total Number Of Contacts

4

Contact Resistance

30mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Termination

Crimp, IDC

Contact Type

Female Socket

Ambalaj

Bulk

Uzunluk

7.5mm

Depth

11.5mm

Housing Material

Polyamide

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Renk

White
