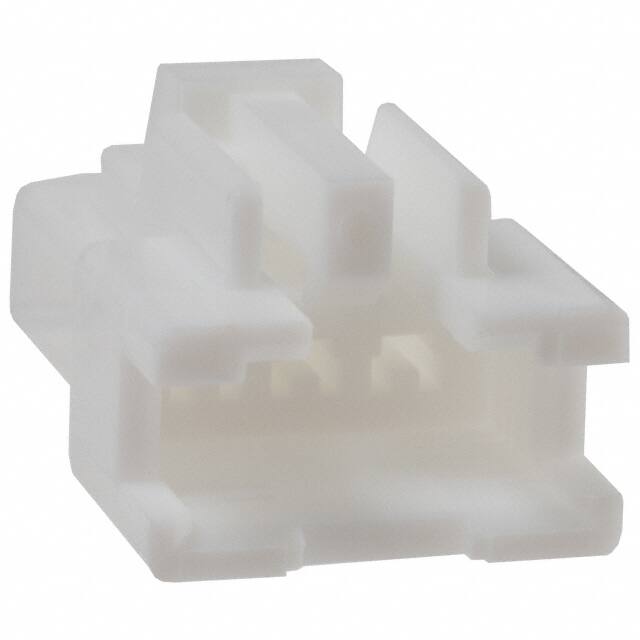

DF1B-3EP-2.5RC

Teknik Özellikler

Montaj Tipi

Free Hanging (In-Line)

Pozisyon Sayısı

3

RoHS Durumu

RoHS Compliant

Reliability

COMMERCIAL

Reference Standard

UL, CSA

Seri

DF1B

Voltage Rated Ac

250V

Note

Contacts Not Included

Montaj

Free Hanging

Dielectric Withstanding Voltage

650VAC V

Radyasyon Dayanımı

No

Mil Conformance

NO

Din Conformance

NO

Terminal

Crimp

Min. Çalışma Sıcaklığı

-35°C

Max Current Rating

3A

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Filter Feature

NO

Max Voltage Rating Ac

250V

Kurşunsuz

Lead Free

Mixed Contacts

NO

Fastening Type

Latch Lock

Contact Finish Mating

TIN/GOLD

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Depth

18.5mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Material

Polyamide

Contact Termination

Crimp, IDC

Contact Type

Male Pin

Ambalaj

Bulk

Uzunluk

11.4mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.098 2.50mm

Total Number Of Contacts

3

Kurşunsuz Kodu

yes

Rated Current Signal

3A

Maks. Çalışma Sıcaklığı

85°C

Polarization Key

POLARIZED HOUSING
