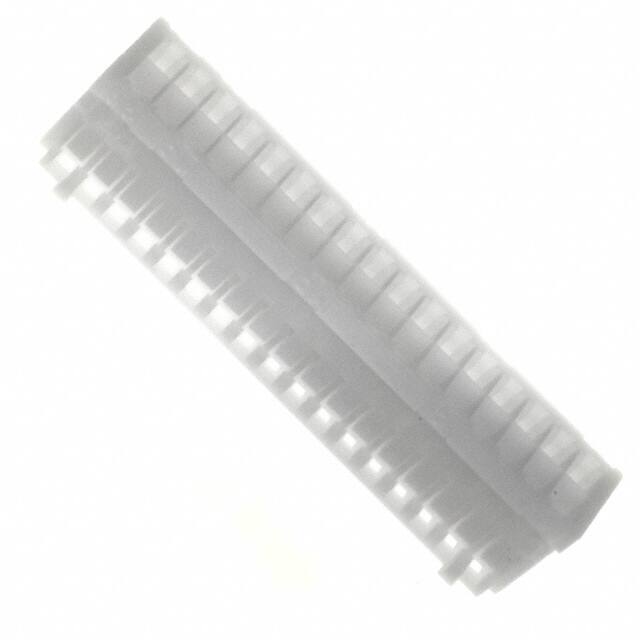

DF1B-34DS-2.5RC

Teknik Özellikler

Kurşunsuz

Lead Free

Mixed Contacts

NO

Body Breadth

0.315 inch

Contact Finish Mating

TIN/GOLD

Iec Conformance

NO

Fabrika Tedarik Süresi

12 Weeks

Din Conformance

NO

Terminal

IDC

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Filter Feature

NO

Dielectric Withstanding Voltage

650VAC V

Note

Contacts Not Included

Montaj

Free Hanging

Mil Conformance

NO

Withdrawl Forcemin

.417 N

Montaj Tipi

Free Hanging (In-Line)

Pozisyon Sayısı

34

RoHS Durumu

RoHS Compliant

Reliability

COMMERCIAL

Body Depth

0.453 inch

Reference Standard

UL, CSA

Seri

DF1B

Voltage Rated Ac

250V

Operating Temperature Min

-35°C

Renk

White

Sıra Sayısı

2

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Rated Current Signal

3A

JESD-609 Kodu

e3/e4

Row Spacing

0.098 (2.50mm)

Polarization Key

POLARIZED HOUSING

Contact Gender

Female

Connector Type

Receptacle

Yükseklik

8mm

Operating Temperature Max

85°C

Contact Materials

PHOSPHOR COPPER

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)
