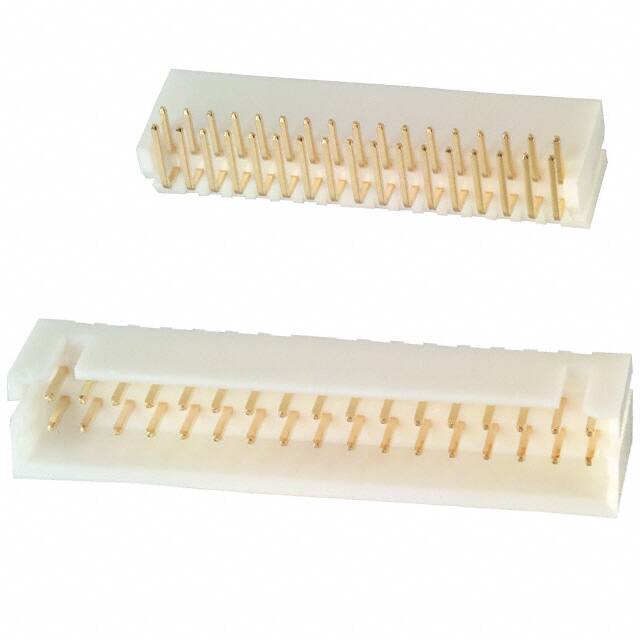

DF1B-34DP-2.5DS(01)

Teknik Özellikler

Number Of Positions Loaded

All

Contact Resistance

30mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Lead Pitch

2.5mm

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Insulation Height

0.339 8.61mm

Insulation Resistance

1000000000Ohm

Durability

50 Cycles

Housing Material

Polyamide

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Uzunluk

45mm

Ambalaj

Bulk

Contact Type

Male Pin

Çalışma Sıcaklığı

-35°C~85°C

Sıra Sayısı

2

Additional Feature

PACKAGING 100 PCS. IN A BAG

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA), Nylon

Parça Durumu

Active

Contact Shape

Square

Contact Finish Thickness Mating

8.00μin 0.203μm

Polarization Key

POLARIZED HOUSING

JESD-609 Kodu

e3/e4

Shrouding

Shrouded - 4 Wall

Row Spacing Mating

0.098 (2.50mm)

Housing Color

White

Rated Current Signal

3A

Style

Board to Cable/Wire

Contact Materials

Brass

Akım Değeri

3A

Number Of Pcb Rows

2

Material Flammability Rating

UL94 V-0

Yükseklik

8.6mm

Connector Type

Header

Dielectric Withstanding Voltage

650VAC V

Montaj

Through Hole

Contact Length Post

0.130 3.30mm

Withdrawl Forcemin

.417 N

Mil Conformance

NO
