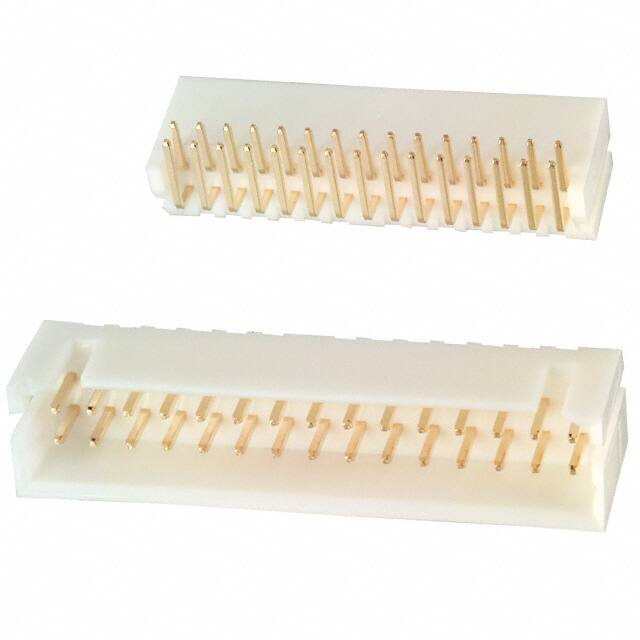

DF1B-30DP-2.5DS(01)

Teknik Özellikler

Dielectric Withstanding Voltage

650VAC V

Montaj

Through Hole

Mil Conformance

NO

Contact Length Post

0.130 3.30mm

Withdrawl Forcemin

.417 N

Montaj Tipi

Through Hole, Right Angle

Pozisyon Sayısı

30

RoHS Durumu

RoHS Compliant

Number Of Conductors

ONE

Özellikler

Keying Slot

ECCN Kodu

EAR99

Reliability

COMMERCIAL

Reference Standard

UL, CSA

Seri

DF1B

Pitch Mating

0.098 2.50mm

Kurşunsuz

Lead Free

Contact Lengthmating

0.177 4.50mm

Body Breadth

0.339 inch

Mixed Contacts

NO

Contact Finish Mating

Gold

Fastening Type

Push-Pull

Fabrika Tedarik Süresi

10 Weeks

Mating Contact Pitch

0.098 inch

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Terminal

Solder

Din Conformance

NO

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Durability

50 Cycles

Insulation Resistance

1000000000Ohm

Insulation Height

0.339 8.61mm

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Lead Pitch

2.5mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Material

Polyamide
