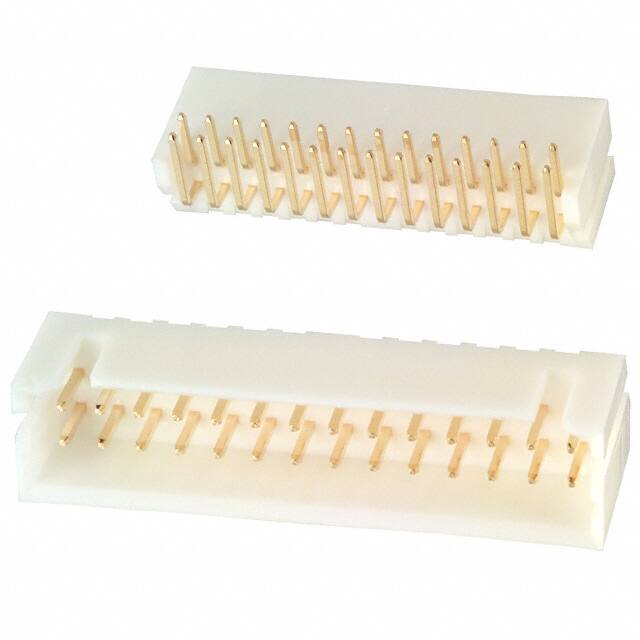

DF1B-28DP-2.5DS(01)

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA), Nylon

Parça Durumu

Active

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Shape

Square

Additional Feature

PACKAGING 100 PCS. IN A BAG

Çalışma Sıcaklığı

-35°C~85°C

Sıra Sayısı

2

Number Of Pcb Rows

2

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Contact Materials

Brass

Nominal Gerilim

250V

Connector Type

Header

JESD-609 Kodu

e3/e4

Shrouding

Shrouded - 4 Wall

Row Spacing Mating

0.098 (2.50mm)

Polarization Key

POLARIZED HOUSING

Housing Color

White

Rated Current Signal

3A

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Lead Pitch

2.5mm

Insulation Resistance

1000000000Ohm

Durability

50 Cycles

Insulation Height

0.339 8.61mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Resistance

30mOhm

Ambalaj

Bulk

Contact Type

Male Pin

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Material

Plastic

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Mating Contact Pitch

0.098 inch

Body Breadth

0.339 inch

Mixed Contacts

NO
