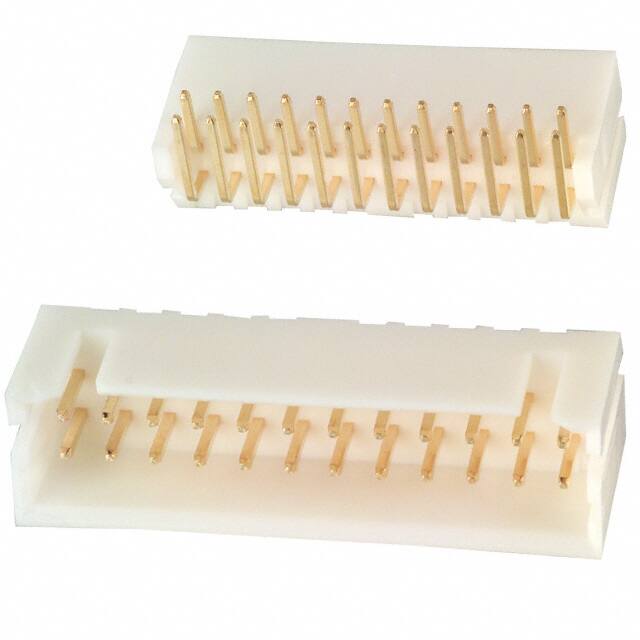

DF1B-24DP-2.5DSA(01)

Teknik Özellikler

Özellikler

Keying Slot

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

24

Montaj Tipi

Through Hole

Voltage Rated Ac

250V

Pitch Mating

0.098 2.50mm

Seri

DF1B

Reference Standard

UL, CSA

Reliability

COMMERCIAL

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

650VAC V

Montaj

Through Hole

Stack Height Mating

14mm

Withdrawl Forcemin

.417 N

Contact Length Post

0.142 3.60mm

Mil Conformance

NO

Din Conformance

NO

Terminal

Solder

HTS Kodu

8536.69.40.40

Gender

Male

Filter Feature

NO

Ul Flammability Code

94V-0

Max Current Rating

3A

Option

GENERAL PURPOSE

Contact Lengthmating

0.177 4.50mm

Max Voltage Rating Ac

250V

Kurşunsuz

Lead Free

Overall Contact Length

0.417 10.60mm

Iec Conformance

NO

Mating Contact Pitch

0.098 inch

Fabrika Tedarik Süresi

10 Weeks

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Mixed Contacts

NO

Body Breadth

0.339 inch

Housing Material

Polyamide

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Depth

8.6mm

Ambalaj

Bulk
