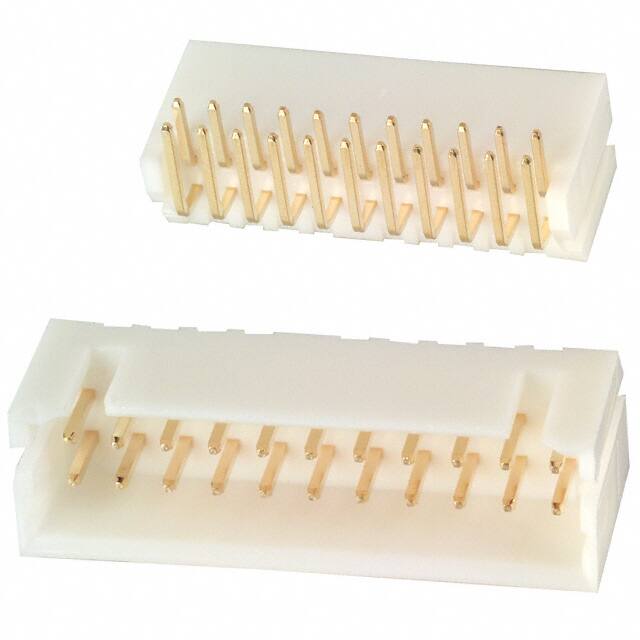

DF1B-22DP-2.5DSA(01)

Teknik Özellikler

Akım Değeri

3A

Contact Materials

Brass

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Yükseklik

9.5mm

Number Of Pcb Rows

2

Connector Type

Header

Polarization Key

POLARIZED HOUSING

Shrouding

Shrouded - 4 Wall

Row Spacing Mating

0.098 (2.50mm)

Rated Current Signal

3A

Housing Color

White

Parça Durumu

Active

Insulation Materials

Polyamide (PA), Nylon

REACH Uyumluluk Kodu

unknown

Contact Shape

Square

Contact Finish Thickness Mating

8.00μin 0.203μm

Sıra Sayısı

2

Çalışma Sıcaklığı

-35°C~85°C

Additional Feature

PACKAGING 100 PCS. IN A BAG

Ambalaj

Bulk

Uzunluk

10mm

Contact Type

Male Pin

Housing Material

Polyamide

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Lead Pitch

2.5mm

Pcb Contact Pattern

RECTANGULAR

Insulation Height

0.374 9.50mm

Durability

50 Cycles

Insulation Resistance

1000000000Ohm

Contact Resistance

30mOhm

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Ul Flammability Code

94V-0

Option

GENERAL PURPOSE

Din Conformance

NO

Terminal

Solder

HTS Kodu

8536.69.40.40

Gender

Male
