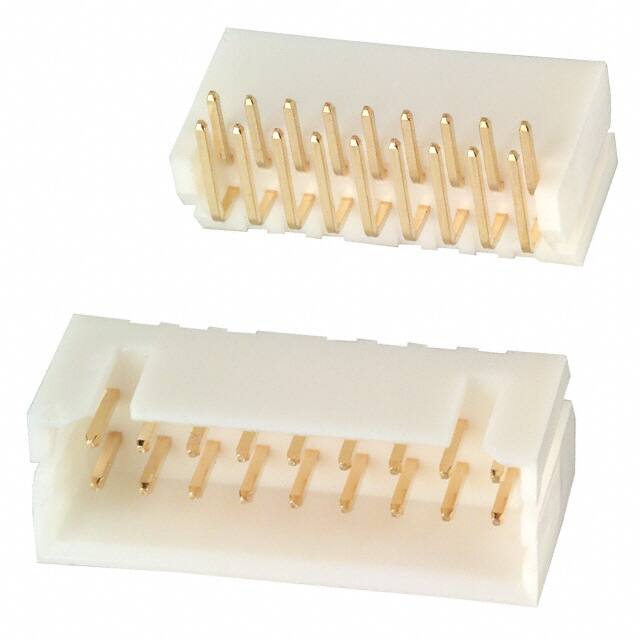

DF1B-18DP-2.5DSA(01)

Teknik Özellikler

Housing Color

White

Rated Current Signal

3A

Polarization Key

POLARIZED HOUSING

Shrouding

Shrouded - 4 Wall

Row Spacing Mating

0.098 (2.50mm)

Connector Type

Header

Style

Board to Cable/Wire

Contact Materials

Brass

Number Of Pcb Rows

2

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-35°C~85°C

Orientation

Straight

Sıra Sayısı

2

Additional Feature

PACKAGING 100 PCS. IN A BAG

Contact Shape

Square

Contact Finish Thickness Mating

8.00μin 0.203μm

Parça Durumu

Active

Insulation Materials

Polyamide (PA), Nylon

Depth

8.6mm

Housing Material

Polyamide

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Type

Male Pin

Uzunluk

25mm

Ambalaj

Bulk

Number Of Positions Loaded

All

Contact Resistance

30mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.374 9.50mm

Durability

50 Cycles

Insulation Resistance

1000000000Ohm

Lead Pitch

2.5mm

Pcb Contact Pattern

RECTANGULAR

Terminal

Solder

Din Conformance

NO

Gender

Male

HTS Kodu

8536.69.40.40

Option

GENERAL PURPOSE

Max Current Rating

3A

Filter Feature

NO

Ul Flammability Code

94V-0
