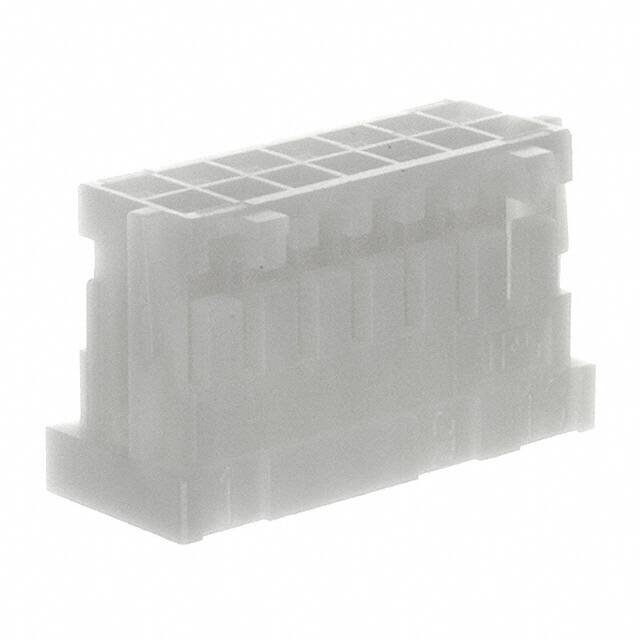

DF1B-14DS-2.5RC

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Montaj Tipi

Free Hanging (In-Line)

Pozisyon Sayısı

14

Voltage Rated Ac

250V

Reliability

COMMERCIAL

Reference Standard

UL

Seri

DF1B

Dielectric Withstanding Voltage

650VAC V

Note

Contacts Not Included

Montaj

Free Hanging

Mil Conformance

NO

Radyasyon Dayanımı

No

Min. Çalışma Sıcaklığı

-35°C

Terminal

IDC

Din Conformance

NO

Ul Flammability Code

94V-0

Filter Feature

NO

Option

GENERAL PURPOSE

Max Current Rating

3A

Max Voltage Rating Ac

250V

Kurşunsuz

Lead Free

Contact Finish Mating

TIN/GOLD

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Mixed Contacts

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Material

Polyamide

Depth

11.5mm

Uzunluk

20mm

Ambalaj

Bulk

Contact Type

Female Socket

Contact Termination

Crimp, IDC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

30mOhm

Kurşunsuz Kodu

yes

Total Number Of Contacts

14

Insulation Resistance

1000000000Ohm

Pitch

0.098 2.50mm

JESD-609 Kodu

e3/e4

Contact Gender

Female
