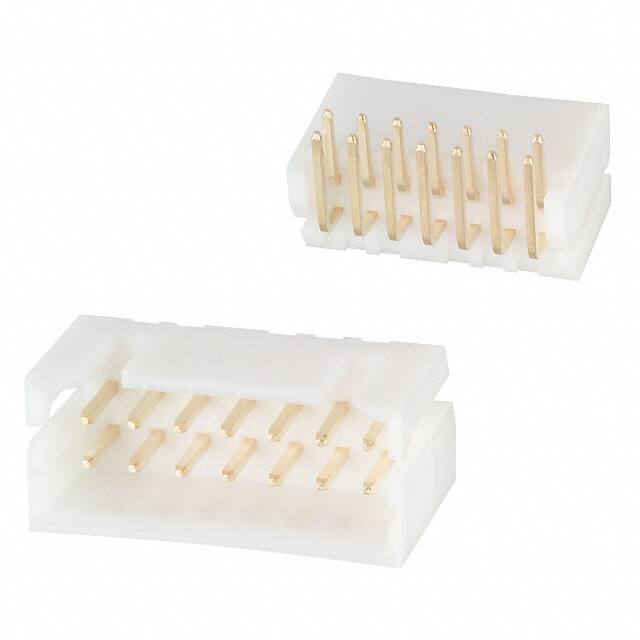

DF1B-14DP-2.5DS(01)

Teknik Özellikler

Pitch Mating

0.098 2.50mm

Reference Standard

UL, CSA

Seri

DF1B

Reliability

COMMERCIAL

Özellikler

Keying Slot

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

14

Montaj Tipi

Through Hole, Right Angle

Contact Length Post

0.130 3.30mm

Withdrawl Forcemin

.417 N

Mil Conformance

NO

Dielectric Withstanding Voltage

650VAC V

Montaj

Through Hole

Filter Feature

NO

Ul Flammability Code

94V-0

Body Length Or Diameter

0.788 inch

Option

GENERAL PURPOSE

Terminal

Solder

Din Conformance

NO

Gender

Male

Fabrika Tedarik Süresi

10 Weeks

Mating Contact Pitch

0.098 inch

Iec Conformance

NO

Contact Finish Mating

Gold

Fastening Type

Push-Pull

Body Breadth

0.339 inch

Mixed Contacts

NO

Contact Lengthmating

0.177 4.50mm

Kurşunsuz

Lead Free

Ambalaj

Bulk

Contact Type

Male Pin

Housing Material

Plastic

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Lead Pitch

2.5mm

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Insulation Height

0.339 8.61mm

Durability

50 Cycles

Insulation Resistance

1000000000Ohm
