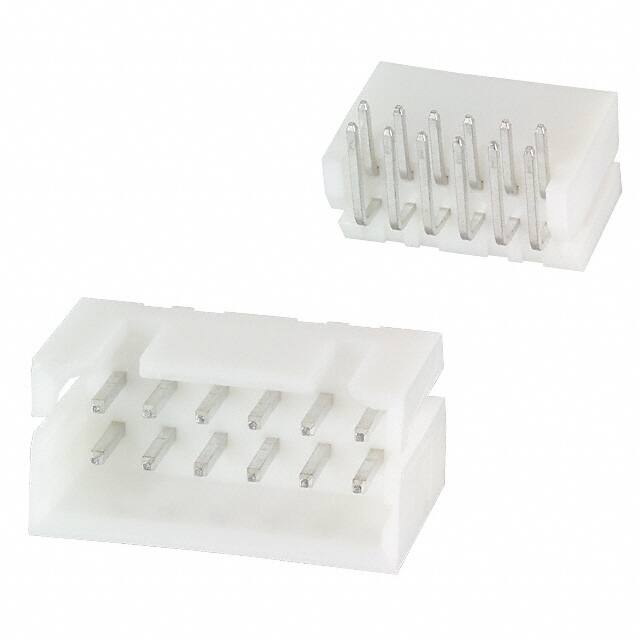

DF1B-12DP-2.5DS(01)

Teknik Özellikler

Dielectric Withstanding Voltage

650VAC V

Montaj

Through Hole

Contact Length Post

0.130 3.30mm

Withdrawl Forcemin

.417 N

Mil Conformance

NO

Pozisyon Sayısı

12

Montaj Tipi

Through Hole, Right Angle

Özellikler

Keying Slot

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Pitch Mating

0.098 2.50mm

Seri

DF1B

Reference Standard

UL, CSA

ECCN Kodu

EAR99

Reliability

COMMERCIAL

Kurşunsuz

Lead Free

Contact Lengthmating

0.177 4.50mm

Body Breadth

0.339 inch

Mixed Contacts

NO

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Mating Contact Pitch

0.098 inch

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Terminal

Solder

Din Conformance

NO

HTS Kodu

8536.69.40.40

Body Length Or Diameter

0.689 inch

Option

GENERAL PURPOSE

Filter Feature

NO

Ul Flammability Code

94V-0

Number Of Positions Loaded

All

Contact Resistance

30mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.339 8.61mm

Durability

50 Cycles

Insulation Resistance

1GOhm

Lead Pitch

2.5mm

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes
