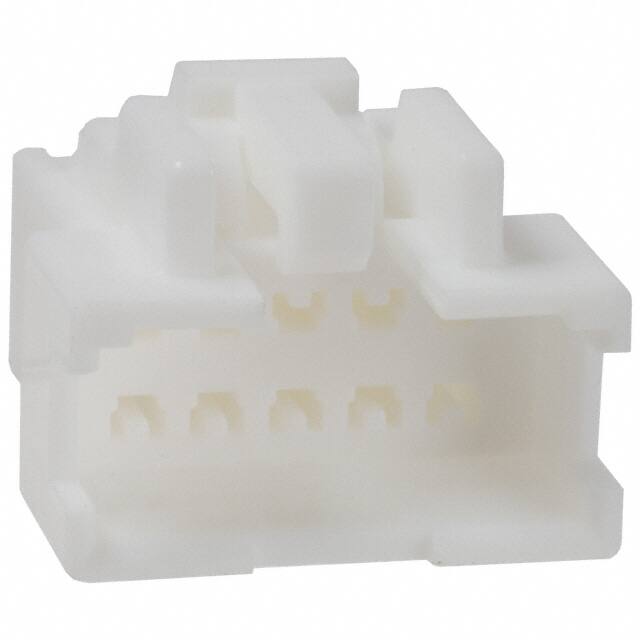

DF1B-10DEP-2.5RC

Teknik Özellikler

Dielectric Withstanding Voltage

650VAC V

Montaj

Free Hanging

Note

Contacts Not Included

Radyasyon Dayanımı

No

Mil Conformance

NO

Withdrawl Forcemin

.417 N

Montaj Tipi

Free Hanging (In-Line)

Pozisyon Sayısı

10

RoHS Durumu

RoHS Compliant

ECCN Kodu

EAR99

Reliability

COMMERCIAL

Reference Standard

UL, CSA

Seri

DF1B

Voltage Rated Ac

250V

Max Voltage Rating Ac

250V

Kurşunsuz

Lead Free

Body Breadth

0.48 inch

Mixed Contacts

NO

Fastening Type

Latch Lock

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Gender

Female

HTS Kodu

8536.69.40.40

Terminal

IDC

Din Conformance

NO

Min. Çalışma Sıcaklığı

-35°C

Option

GENERAL PURPOSE

Max Current Rating

3A

Contact Plating

Gold

Ul Flammability Code

94V-0

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

30mOhm

Pitch

0.098 2.50mm

Total Number Of Contacts

10

Kurşunsuz Kodu

yes

Depth

18.5mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Material

Polyamide

Contact Type

Male Pin
