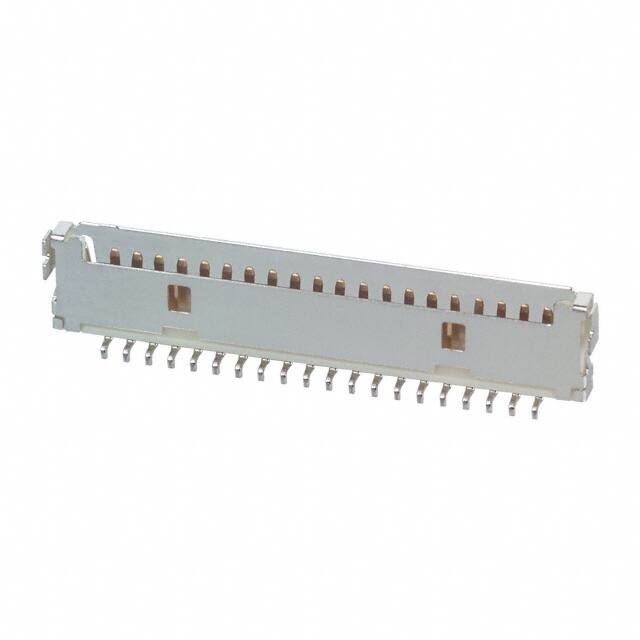

DF19G-20P-1H(59)

Teknik Özellikler

Housing Color

Beige

Rated Current Signal

1A

Shrouding

Shrouded - 3 Wall

Genişlik

5.7mm

Polarization Key

POLARIZED HOUSING

Nominal Gerilim

100V

Connector Type

Receptacle

Number Of Pcb Rows

1

Yükseklik

1.65mm

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Akım Değeri

1A

Contact Materials

Phosphor Bronze

Additional Feature

LOW PROFILE

Çalışma Sıcaklığı

-35°C~85°C

Sıra Sayısı

1

Insertion Forcemax

3.0024 N

REACH Uyumluluk Kodu

unknown

Parça Durumu

Obsolete

Insulation Materials

Polyamide (PA), Nylon

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Material

Plastic

Contact Type

Male Pin

Uzunluk

23.95mm

Ambalaj

Tape & Reel (TR)

Number Of Poles

20

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2006

Number Of Positions Loaded

All

Contact Resistance

30mOhm

Durability

50 Cycles

Insulation Resistance

500000000Ohm

Insulation Height

0.065 1.65mm

Pcb Contact Pattern

RECTANGULAR

Total Number Of Contacts

20

Lead Pitch

1mm

Gender

Male

Terminal

Solder

Din Conformance

NO

Option

GENERAL PURPOSE
