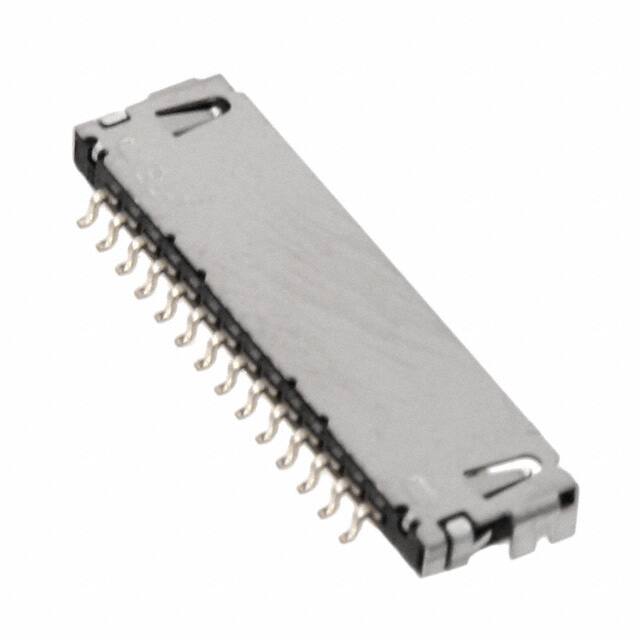

DF19G-14P-1H(54)

Teknik Özellikler

HTS Kodu

8536.69.40.40

Din Conformance

NO

Terminal

Solder

Max Current Rating

1A

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Filter Feature

NO

Kurşunsuz

Lead Free

Max Voltage Rating Ac

100V

Reach Svhc

No SVHC

Mixed Contacts

NO

Fastening Type

Friction Lock

Contact Finish Mating

Gold

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Montaj Tipi

Surface Mount, Right Angle

Pozisyon Sayısı

14

RoHS Durumu

RoHS Compliant

Özellikler

Glow Wire Compliant, Shielded, Solder Retention

ECCN Kodu

EAR99

Pitch Mating

0.039 1.00mm

Seri

DF19

Voltage Rated Ac

100V

Montaj

Surface Mount

Radyasyon Dayanımı

No

Mil Conformance

NO

Housing Color

Beige

Contact Finish Post

Tin-Copper

Shrouding

Shrouded - 3 Wall

JESD-609 Kodu

e2

Connector Type

Receptacle

Material Flammability Rating

UL94 V-0

Akım Değeri

1A

Contact Materials

Phosphor Bronze

Style

Board to Cable/Wire

Sıra Sayısı

1

Çalışma Sıcaklığı

-35°C~85°C

Orientation

Right Angle

Contact Finish Thickness Mating

3.90μin 0.099μm

Parça Durumu

Active
