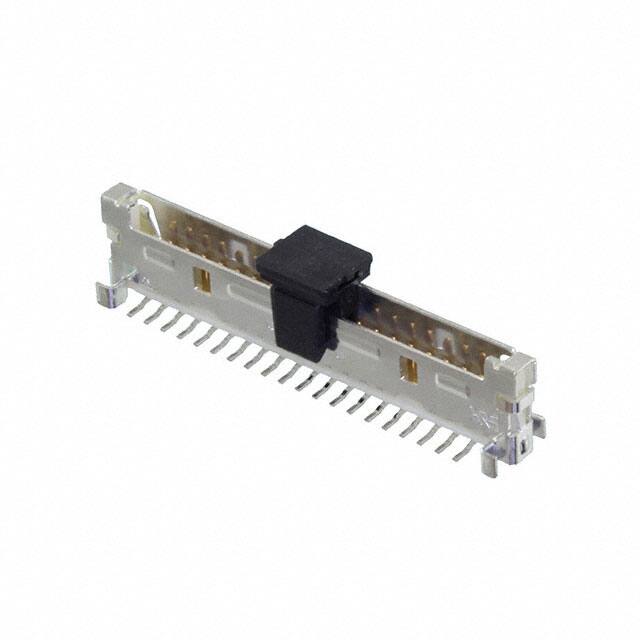

DF19-20P-1V(56)

Teknik Özellikler

Stack Height Mating

7.7mm

Filter Feature

NO

Sıra Sayısı

1

Çalışma Sıcaklığı

-35°C~85°C

Pozisyon Sayısı

20

Contact Materials

Phosphor Bronze

Connector Type

Receptacle

Depth

3.8mm

Housing Color

Beige

Terminal

Solder

Housing Material

Polyamide

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Insulation Height

0.206 5.23mm

Max Voltage Rating Ac

100V

Max Current Rating

1A

Insulation Materials

Polyamide (PA), Nylon

Contact Finish Post

Tin-Copper

Ambalaj

Tape & Reel (TR)

Din Conformance

NO

Orientation

Straight

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Insulation Resistance

500MOhm

Contact Gender

Female

Contact Finish Mating

Gold

Contact Resistance

30mOhm

Iec Conformance

NO

Özellikler

Pick and Place, Solder Retention

Mil Conformance

NO

Pitch Mating

0.039 1.00mm

Parça Durumu

Active

Fastening Type

Friction Lock

Total Number Of Contacts

20

Montaj Tipi

Surface Mount

Number Of Positions Loaded

All

Contact Type

Male Pin

Ul Flammability Code

94V-0

JESD-609 Kodu

e2

Fabrika Tedarik Süresi

10 Weeks
